3D Geomat
Plastic Geomat Slope Erosion Resistance Geomat Plastic 3d geomat
Introduction

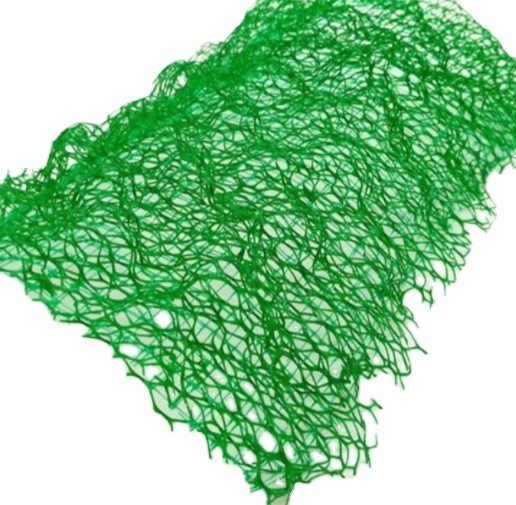

Geomat is a new-typed seed planting material with tridimensional structure, which can effectively prevent the soil being washed away, increase the area of the virescence, improve the environment.
It is a new type of civil engineering material, belonging to the rose body material in the field of new material technology repeated in various materials in the national high tech product catalog. It's a kind of three-dimensional network like towel gourd net mat for grass planting and soil consolidation. It's loose and flexible in texture, with 90% of the space for filling soil, gravel and fine stone. The plant roots can pass through it, and grow comfortably, orderly and evenly
Product Parameter
| Item | EM2 | EM3 | EM4 | EM5 |
| Layer | 2 | 3 | 4 | 5 |
| Unit Weight≥(g/m2) | 220 | 260 | 350 | 430 |
| Thickness≥(mm) | 10 | 12 | 14 | 16 |
| Breaking Load(LD)≥(KN/M) | 0.8 | 1.4 | 2 | 3.2 |
| Elongation (%) | <30 | |||
| Color | Black, Green | |||
| Carbon Black (%) | 2 | |||
| Raw Material | HDPE, UV | |||
| Dimension/Roll (WXL) | 2X50m | 2X50m | 2X50m | 2X50m |
| 20GP(m2) | 4500 | 4000 | 3500 | 3000 |
| 40GP(m2) | 10000 | 9000 | 8000 | 7500 |
| specification | EM2 | EM3 | EM4 | EM5 |
| Mass per unit area(g/m2) | 220 | 260 | 350 | 430 |
| Thickness(mm) | 10 | 12 | 14 | 16 |
| Width(mm) | 2.0 | |||
| Length(mm) | 30 | |||
| Longitudinal Tensile strength(KN/m) | 0.8 | 1.4 | 2.0 | 3.2 |
| Transverse Tensile strength(KN/m) | 0.8 | 1.4 | 2.0 | 3.2 |
| Remark | The special spec or size can be manufactured according to the demands of the contract or agreement. | |||
Applications
1. Highway and railway subgrade strengthen: effectively distribute load, improve its bearing capacity and
stability and prolong service life
3. Highway slope protection: prevent landslide and protect water and soil, and beautify the environment
4. In reservoir and rive dykes to effectively prevent landslide
4.Widely used in the coastal engineering due to its soft good toughness, corrosion strong characteristic to
buffer wave swept and corrosion

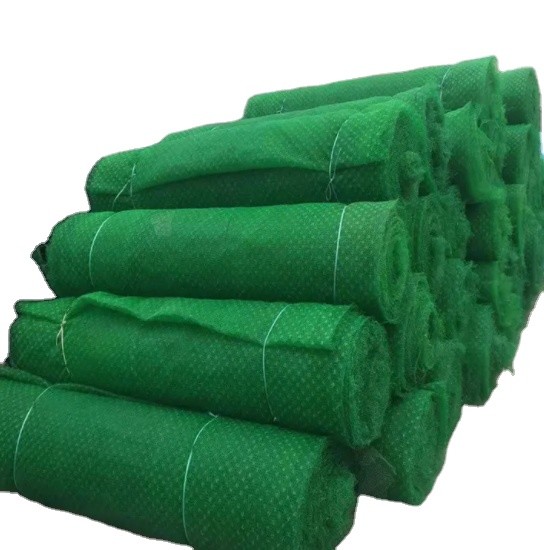

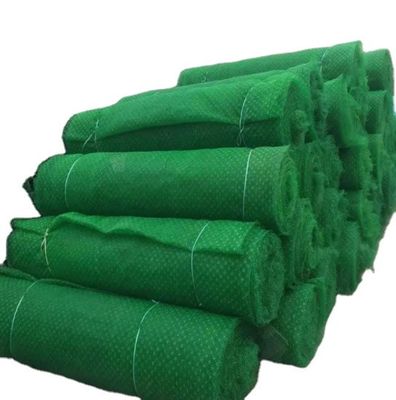

Packing
Normal roll packing or according to customer's request.
