Drainage 3D Geomat Mesh Grille For Dams Roads

Basic Information
Place of Origin: Anhui, Luan, China
Brand Name: wanshengli
Certification: GB, ISO, SGS
Model Number: 150g~1000g
Minimum Order Quantity: 1000sqm
Price: 0.55 USD~3.5USD per sqm
Packaging Details: Standard packing
Delivery Time: 5~8 working days according to actual quantity
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000 sqm per day
Detail Information
Material: Virgin HDPE Material Length: 50m Or As Per Your Request
Width: 2-8m Or As Your Request Color: Black
MOQ: 1000sqm
High Light:

Drainage 3D Geomat

,

3D Geomat Mesh

,

Dams geomat drainage mat


Product Description

Mesh grille has the advantages of high elasticity and high strength, and is widely used in dams and roads.

3D Geomat is a new type of geosynthetic material with three-dimensional structure suitable for soil and water conservation, which can effectively prevent soil and water loss, increase green area, and improve the ecological environment. Due to the use of polymer materials and UV anti-ultraviolet stabilizers, geomat has higher chemical stability and no pollution to the environment.

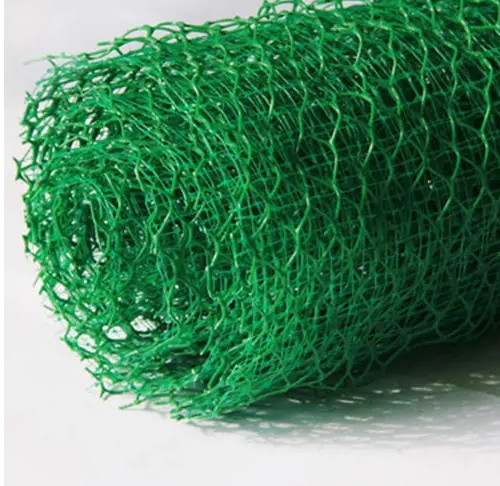

Drainage 3D Geomat Mesh Grille For Dams Roads 0

Product Parameter



Item EM2 EM3 EM4 EM5
Layer 2 3 4 5
Unit Weight≥(g/m2) 220 260 350 430
Thickness≥(mm) 10 12 14 16
Breaking Load(LD)≥(KN/M) 0.8 1.4 2 3.2
Elongation (%) <30
Color Black, Green
Carbon Black (%) 2
Raw Material HDPE, UV
Dimension/Roll (WXL) 2X50m 2X50m 2X50m 2X50m
20GP(m2) 4500 4000 3500 3000
40GP(m2) 10000 9000 8000 7500

Applications

1. Highway and railway subgrade strengthen: effectively distribute load, improve its bearing capacity and stability and prolong service life

3. Highway slope protection: prevent landslide and protect water and soil, and beautify the environment

4. In reservoir and rive dykes to effectively prevent landslide

4.Widely used in the coastal engineering due to its soft good toughness, corrosion strong characteristic to buffer wave swept and corrosion

index BFD30-30 BFD40-40 BFD50-50 BFD80-80 BFD100-100 BFD125-125 BFD150-150
Grid size 12.7*12.7 25.4*25.4 50.8*50.8
Bonding strength kN/m verticcal ≥30 ≥40 ≥50 ≥80 ≥100 ≥125 ≥150
crosswise ≥30 ≥40 ≥50 ≥80 ≥100 ≥125 ≥150
extensibility(%) ≤4
temperature toleration -100~~280



Features: The product has the characteristics of high strength, low elongation, high temperature resistance, high modulus, light weight, good toughness, corrosion resistance and long service life. It can be widely used in engineering fields such as maintenance of old cement pavement, airport runway, dam, river bank, slope protection, road and bridge pavement reinforcement treatment, etc., and can strengthen and reinforce the pavement, prevent pavement rutting fatigue crack, hot and cold expansion crack and reflection crack below, and disperse the pavement bearing stress, prolong the service life of the pavement, with high tensile strength, low elongation, no long-term creep, good physical and chemical stability, good thermal stability, fatigue cracking resistance and high temperature rutting resistance.



指标 BSD30-30 BSD40-40 BSD50-50 BSD60-60 BSD80-80 BSD100-100 BSD150-150
纵向抗拉强度kN/m ≥30 ≥40 ≥50 ≥60 ≥80 ≥100 ≥150
横向抗拉强度kN/m ≥30 ≥40 ≥50 ≥60 ≥80 ≥100 ≥150
总横向延伸率(%) ≤2
伸长率1%时纵向抗拉强度kN/m ≥20 ≥32 ≥40 ≥48 ≥63 ≥81 ≥125
伸长率1%时横向抗拉强度kN/m ≥20 ≥32 ≥40 ≥48 ≥63 ≥81 ≥125
粘焊点极限剥离力 ≥100 ≥100 ≥100 ≥100 ≥100 ≥100 ≥100


Drainage 3D Geomat Mesh Grille For Dams Roads 1Drainage 3D Geomat Mesh Grille For Dams Roads 2Drainage 3D Geomat Mesh Grille For Dams Roads 3Drainage 3D Geomat Mesh Grille For Dams Roads 4Drainage 3D Geomat Mesh Grille For Dams Roads 5Drainage 3D Geomat Mesh Grille For Dams Roads 6Drainage 3D Geomat Mesh Grille For Dams Roads 7Drainage 3D Geomat Mesh Grille For Dams Roads 8Drainage 3D Geomat Mesh Grille For Dams Roads 9Drainage 3D Geomat Mesh Grille For Dams Roads 10Drainage 3D Geomat Mesh Grille For Dams Roads 11
