Highway Drainage 3D Geomat 400 Soil Erosion Prevention

Basic Information
Place of Origin: Anhui, Luan, China
Brand Name: Wanshengli
Certification: GB, ISO, SGS
Minimum Order Quantity: 1000sqm
Price: 0.55 USD~3.5USD per sqm
Packaging Details: Standard packing
Delivery Time: 5~8 working days according to actual quantity
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000 sqm per day
Detail Information
Material: Virgin HDPE Material Length: 50m Or As Per Your Request
Width: 2-8m Or As Your Request Color: Black
Design: Industrial, Contemporary Sample: Free Provided
Packing: Standard Delivery: According To The Quantity
Standard: ISO9001, ISO14001,OSHSAS18001,GM-13, ASTM
High Light:

Highway 3D Geomat

,

Soil 3D Geomat

,

Drainage geomat 400


Product Description

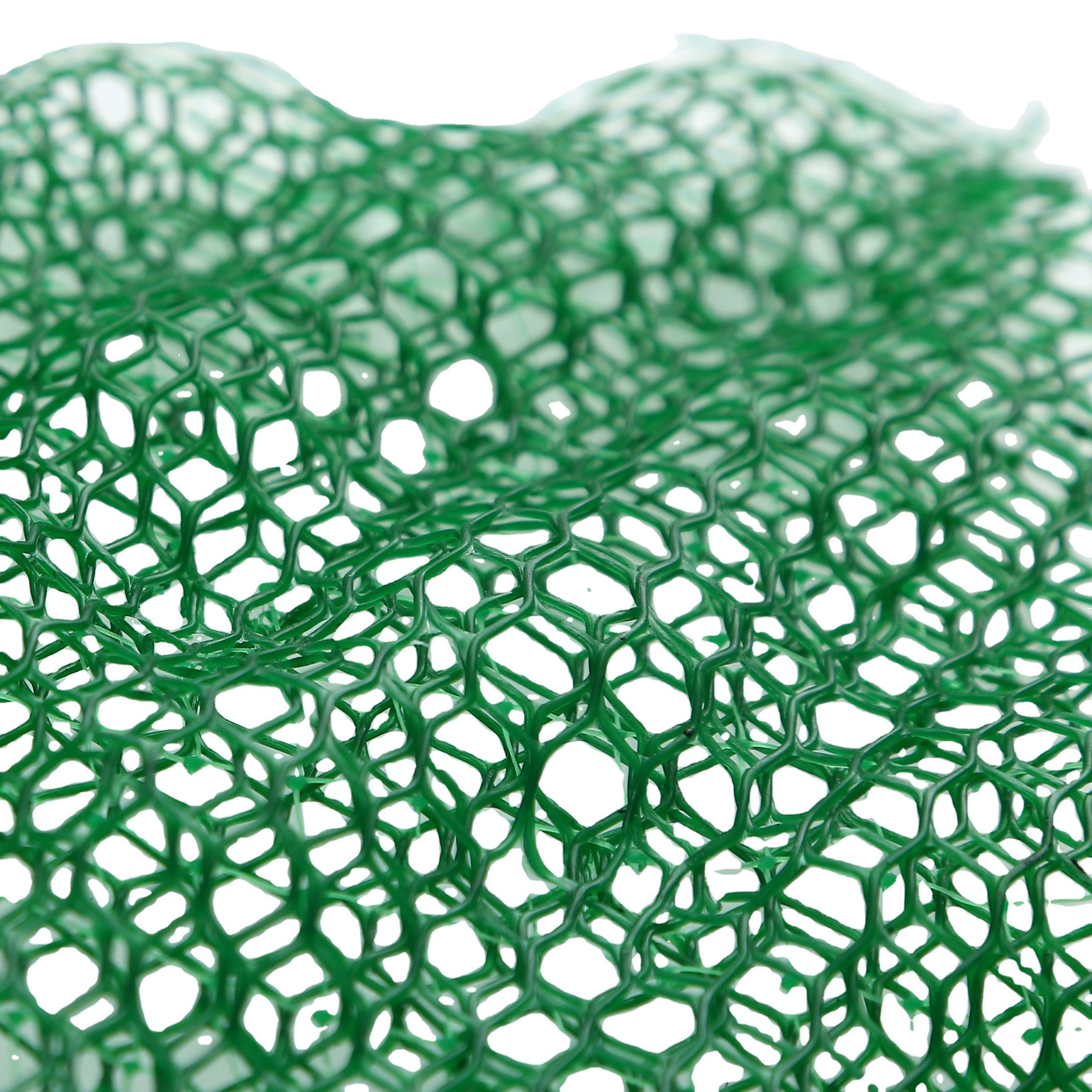

3D Geomat

3D Geomat is a new type of geosynthetic material with three-dimensional structure suitable for soil and water conservation, which can effectively prevent soil and water loss, increase green area, and improve the ecological environment. Due to the use of polymer materials and UV anti-ultraviolet stabilizers, geomat has higher chemical stability and no pollution to the environment.

Highway Drainage 3D Geomat 400 Soil Erosion Prevention 0

Product Parameter



Item EM2 EM3 EM4 EM5
Layer 2 3 4 5
Unit Weight≥(g/m2) 220 260 350 430
Thickness≥(mm) 10 12 14 16
Breaking Load(LD)≥(KN/M) 0.8 1.4 2 3.2
Elongation (%) <30
Color Black, Green
Carbon Black (%) 2
Raw Material HDPE, UV
Dimension/Roll (WXL) 2X50m 2X50m 2X50m 2X50m
20GP(m2) 4500 4000 3500 3000
40GP(m2) 10000 9000 8000 7500

Applications

1. Highway and railway subgrade strengthen: effectively distribute load, improve its bearing capacity and stability and prolong service life

3. Highway slope protection: prevent landslide and protect water and soil, and beautify the environment

4. In reservoir and rive dykes to effectively prevent landslide

4.Widely used in the coastal engineering due to its soft good toughness, corrosion strong characteristic to buffer wave swept and corrosion
