Quick Detail:
Material: polyethelene, PE
Function: Protect, isolation
Width: 3m ,4m, 5m, 6m
Application: underground project

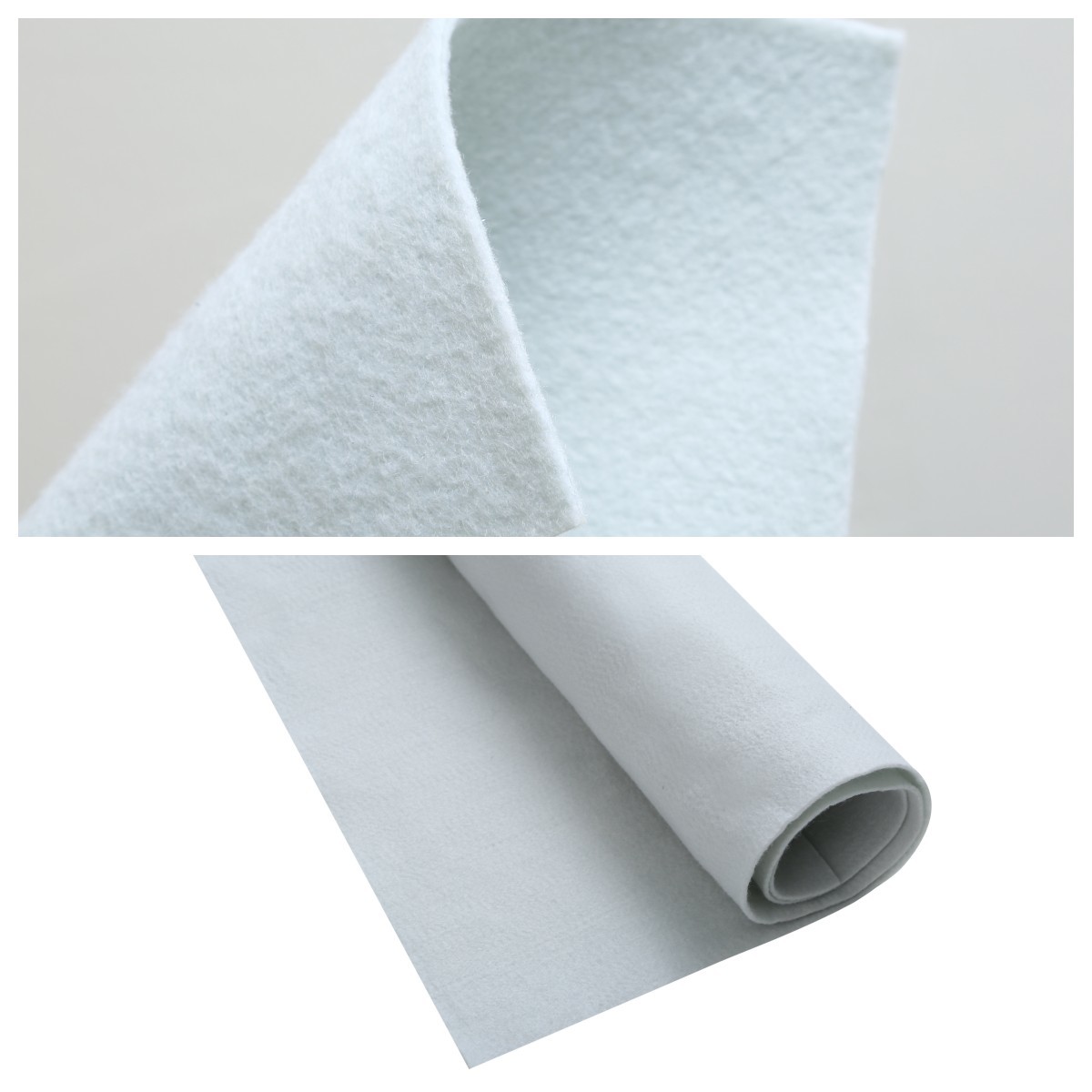

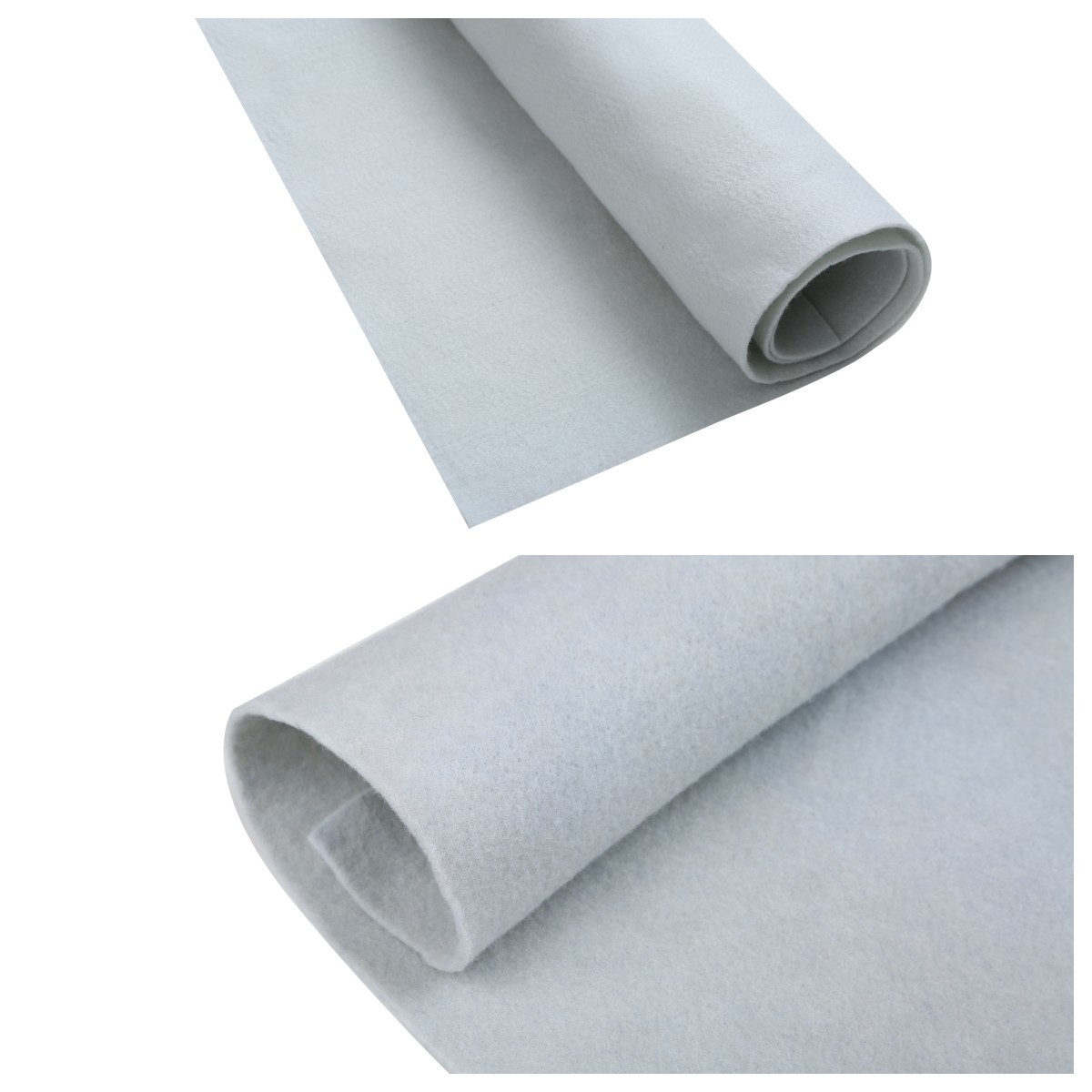

Wanshengli brand short fiber non woven filament geotextile is made from PP polypropylene, and PET polyester, which is a new special geotechnical engineering construction material. It is ok for different thickness, because short filament fabric is stiff, thick, plump and soft. Short non woven fiber filament geotextile is interweaved into net by high technology, advanced equipment and special steps with different kinds of fibers by needling punch and other procedures.
Wanshengli brand non woven geotextile is manufactured using special technology which makes our non woven fabric the strongest in the industry. With equal strength in both the machine and cross direction, AURA-PRO caters to the roofing and geotextile sectors.
It can mimic the appearance, texture and strength of a woven fabric and can be as bulky as the thickest padding. This non woven fabric is made from fibers that are bonded together by thermal mechanical processing and can provide features such as absorbency, liquid repellency, resilience, stretch, softness and strength to last in any environment. These properties are often combined to create fabrics suited for specific jobs while achieving a good balance between product life and cost.
Geosynthetic Fabric Features
No. |
Item Index Specification |
100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 800 | Remarks |
1 | Unit area mass deviation,% | -8 | -8 | -8 | -8 | -7 | -7 | -7 | -7 | -6 | -6 | -6 | |
2 | thickness, mm ≥ | 0.9 | 1.3 | 1.7 | 2.1 | 2.4 | 2.7 | 3 | 3.3 | 3.6 | 4.1 | 5 | |
3 | Width deviation, % | -0.5 | |||||||||||
4 | Breaking strength, KN/M ≥ | 0.08 | 0.12 | 0.16 | 0.2 | 0.24 | 0.28 | 0.33 | 0.38 | 0.42 | 0.46 | 0.6 | Vertical and horizontal |
5 | Elongation at break, % | 25-100 | |||||||||||
6 | CBR bursting strength,KN ≥ | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3.2 | 4 | |
7 | Equivalent aperture,O99(O35),mm | 0.07-0.2 | |||||||||||
8 | Vertical permeability coefficient,cm/s | KX(10 -1 -10 -3 ) | K=1.0-9.9 | ||||||||||
9 | Tear strength 3,KN ≥ | 0.08 | 0.12 | 0.16 | 0.2 | 0.24 | 0.28 | 0.33 | 0.38 | 0.42 | 0.4 | 0.6 | Vertical and horizontal |
Geotextile, also known as geotextile fabric, is a permeable geosynthetic material made of synthetic fibers by needle punching or weaving. Geotextile is one of the new geosynthetic materials. The finished product is cloth-like, with a general width of 4-6 meters and a length of 50-100 meters. Geotextiles have excellent filtration, drainage, isolation, reinforcement, and protection functions, and have the characteristics of lightweight, high tensile strength, good permeability, high-temperature resistance, freezing resistance, aging resistance, and corrosion resistance. There are many types of geotextiles. Short-filament geotextiles and filament geotextiles are two types of geotextiles. and non-woven geotextile or woven geotextile. Let’s take a look at the differences between short-filament geotextiles and filament geotextiles and short-filament geotextiles and filament geotextiles.
Applications
Geosynthetic Fabric Geotextile Package
Product is packed as rolls with tight belt and woven bags. It can gurantee convenient unloading and protecting product.
