Underground GCL Geotextiles Geosynthetic Clay Liner Waterproof Blanket

Basic Information
Place of Origin: Luan Anhui China
Brand Name: wanshengli
Certification: ISO9001, ISO14001,OSHSAS18001,GM-13, ASTM
Model Number: 1.0mm 2.0mm
Minimum Order Quantity: 1000sqm
Price: 1.4 USD ~3.8 USD per sqm
Packaging Details: Woven Plastic Bag
Delivery Time: 5~8 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000 sqm per day
Detail Information
Color: Black And White Certificate: ISO9001
OEM: Support Material: Bentonite Clay
MOQ: 1000sqm
High Light:

GCL Geosynthetic Clay Liner

,

Waterproof Geosynthetic Clay Liner

,

Underground gcl clay liner


Product Description

Geotextiles can be used according to actual scenes, underground and other places, and have good protection.





GCL Bentonite Waterproof Blanket

GCL Waterproof blanket is combined with 3 parts. The upper level and the lower level are woven geotextile and non woven textile, the middle level is bentonite clay, which are carefully selected crude and filled in between the two levels after special processing. The bentonite clay in GCL made by this method does not flow in a fixed direction. It distributes evenly and forms waterproof layer, owning excellent waterproof features. This GCL is a kind of new green waterproof materials, which are widely applied in many waterproof construction projects.

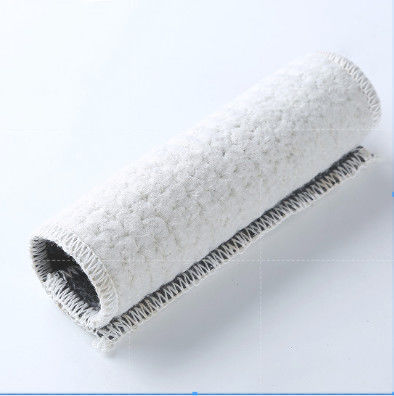

Underground GCL Geotextiles Geosynthetic Clay Liner Waterproof Blanket 0

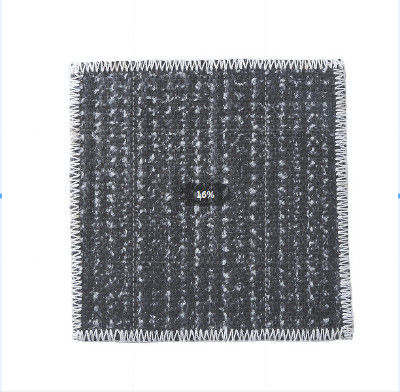

Underground GCL Geotextiles Geosynthetic Clay Liner Waterproof Blanket 1

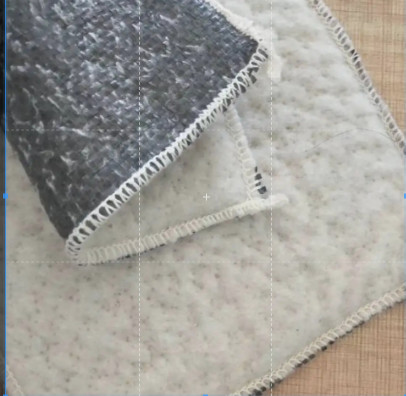

Underground GCL Geotextiles Geosynthetic Clay Liner Waterproof Blanket 2



Item Technical Index
GCL-NP GCL-OF GCL-AH
Bentonite Weight(g/m2) ≧4000 ≧4000 ≧4000
Bentonite Swelling index(mL/2g) ≧24
Methylene blue index(g/100g) ≧30
Tensile Strength( N/100mm) ≧600 ≧700 ≧600
Elongation Under Maximum Load(%) ≧10 ≧10 ≧8
Filter Loss(ml) ≦18 ≦18 ≦18
Bentonite Durability(ml/2g) ≧20 ≧20 ≧20
Hydrostatic Pressure Resistence 0.4MPa,1h 0.6MPa,1h 0.6MPa,1h
Coefficient Permeability(m/s) ≦5.0x10-11 ≦5.0x10-12 ≦1.0x10-12

Underground GCL Geotextiles Geosynthetic Clay Liner Waterproof Blanket 3

Underground GCL Geotextiles Geosynthetic Clay Liner Waterproof Blanket 4



Underground GCL Geotextiles Geosynthetic Clay Liner Waterproof Blanket 5

Underground GCL Geotextiles Geosynthetic Clay Liner Waterproof Blanket 6

Waterproof blanket and bentonite composite waterproof blanket (GCL) is a new geosynthetic material. It is a carpet waterproof coiled material made of graded natural sodium bentonite particles and corresponding additives, and the bentonite particles are fixed between geotextile and plastic woven cloth by acupuncture technology and equipment. Bentonite waterproof blanket not only has all the characteristics of geotechnical materials, but also has excellent waterproof (seepage) performance.

Underground GCL Geotextiles Geosynthetic Clay Liner Waterproof Blanket 7





Product Parameter




Underground GCL Geotextiles Geosynthetic Clay Liner Waterproof Blanket 8

Underground GCL Geotextiles Geosynthetic Clay Liner Waterproof Blanket 9Underground GCL Geotextiles Geosynthetic Clay Liner Waterproof Blanket 10Underground GCL Geotextiles Geosynthetic Clay Liner Waterproof Blanket 11Underground GCL Geotextiles Geosynthetic Clay Liner Waterproof Blanket 12Underground GCL Geotextiles Geosynthetic Clay Liner Waterproof Blanket 13Underground GCL Geotextiles Geosynthetic Clay Liner Waterproof Blanket 14
