Place of Origin: | Luan, China |
---|---|
Brand Name: | WANSHENGLI |
Certification: | BV, GB, ISO,CE, SGS |
Model Number: | 150g~1000g |
Minimum Order Quantity: | 1100sqm |
Price: | 0.25 USD ~3.8 USD per sqm |
Packaging Details: | Woven plastic packing |
Delivery Time: | As per your quantity |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram or through alibaba trade assurance |
Supply Ability: | 40000 sqm per day |
Product Material: | PE | Main Color: | White Black |
---|---|---|---|
Application: | Asphalt Pavement, Sewage Plant, Coastal Beach, Road, Railway, Da | Length: | 50m 100m 200m |
Width: | 5.8m, 5.5m | Gross Weight: | 150g~1000g |
Free Sample: | Support | Roll Size: | Width: 1m To 5.8m, Length: 50m To 200m |
High Light: | Non Woven geotextile retaining wall,Filament geotextile retaining wall,Filament geotech membrane |

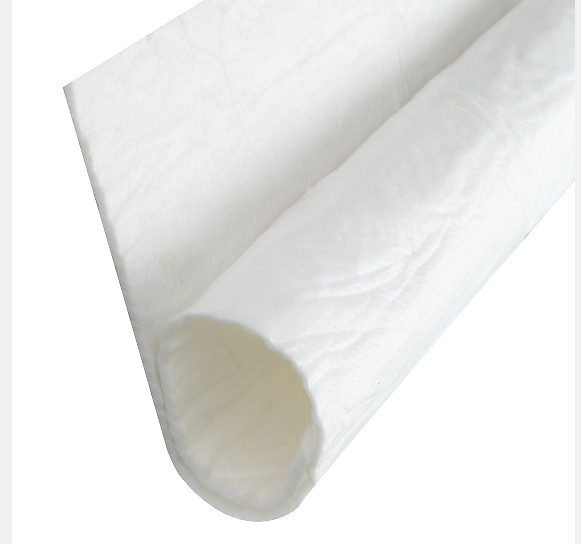

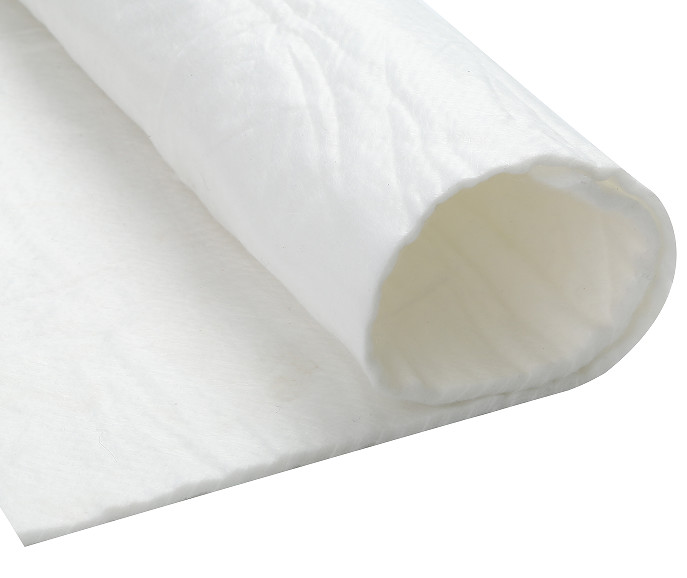

High Tensile Filament non woven Geotextile For Civil Construction Project
Quick Detail:
Material: polyethelene, polyester, PE
Function: Protection, isolation and enhance
Width: 5.5m
Application: outside construction project
Wanshengli brand filament needle punched non-woven geotextile. It is a new engineering construction material as standardized product it has widly used in our domestic civil engineerig field.
According to the length of yarn, it has 2 types: short filament and filament fibers.
It is made from polyester or polypropylene filament, and formed into a network and consolidation. The inside fiber are arranged into a three-dimensional structure. It is not only good mechanical properties, but also has a good vertical and horizontal drainage performance and good extension properties and high resistance to alkali biological and acid, anti-aging and other chemical factors. Meanwhile, its advantage includes filtration performance, tortuous pore distribution, a wide pore size range, excellent permeability.
Our geotextile is woved into nets by advanced equipments and technologies within different fibers by needling punched and other special spunbond procedures making the fabric plump, soft, stiff and thick to be suitable for different thickness's requirements.
Filament non woven geotextile are needle punched together to get the stable 3D with highter tensile strength fabric, therefore the tensile strength of filament is higher than that of short filament no-woven geotextile. The fiber is soft and has a certain tear resistance, so it has good functions of protection, sewage filtration, reinforcement and water filtration. Its specifications range: 100 g/㎡ -- 800 g/㎡. The main material is polyester and polypropylene fiber contributing to its excellent deformation adaptability, filtration, durability, water permeability and plane drainage capacity.
Geosynthetic Fabric Features
No. |
Item Index Specification |
100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 800 | Remarks |
1 | Unit area mass deviation,% | -6 | -6 | -6 | -5 | -5 | -5 | -5 | -5 | -4 | -4 | -4 | |
2 | thickness, mm ≥ | 0.8 | 1.2 | 1.6 | 1.9 | 2.2 | 2.5 | 2.8 | 3.1 | 3.4 | 4.2 | 5.5 | |
3 | Width deviation, % | -0.5 | |||||||||||
4 | Breaking strength, KN/M ≥ | 4.5 | 7.5 | 10 | 12.5 | 15 | 17.5 | 20.5 | 22.5 | 25 | 30 | 40 | Vertical and horizontal |
5 | Elongation at break, % | 40-80 | |||||||||||
6 | CBR bursting strength,KN ≥ | 0.8 | 1.4 | 1.8 | 2.2 | 2.6 | 3 | 3.5 | 4 | 4.7 | 5.5 | 7 | |
7 | Equivalent aperture,O99(O35),mm | 0.07-0.2 | |||||||||||
8 | Vertical permeability coefficient,cm/s | KX(10 -1 -10 -3 ) | K=1.0-9.9 | ||||||||||
9 | Tear strength 3,KN ≥ | 0.14 | 0.21 | 0.28 | 0.35 | 0.42 | 0.49 | 0.56 | 0.63 | 0.7 | 0.82 | 1.1 | Vertical and horizontal |
Applications
It is widely applied in filtration, reinforcement, isolation and drainage of weak foundation road, highway, railway, dyke, flood dikes, coastal beach and other projects, especially for saline alkali swamp and landfill.
Geosynthetic Fabric Geotextile Package
packed as rolls with tight belt and woven bags. It can gurantee convenient unloading and protecting product.
