If anti-seepage is needed in airport or mine construction, this geotextile will play an important role.
Quick Detail:
Material: polyethelene,PE, Polyester
Function: Protection, isolation and enhance
Width: 5.5m, 5.8m or as per your request
Application: Coastal Sediment control

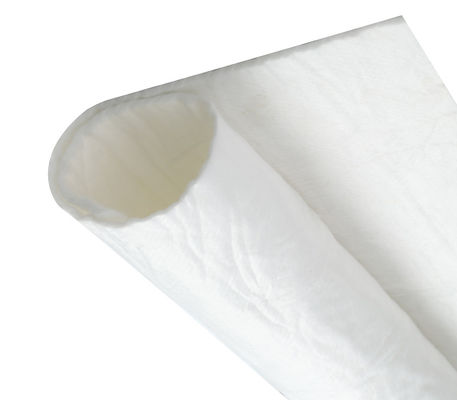

Wanshengli brand filament needle punched non-woven geotextile. It is a new engineering construction material as standardized product it has widly used in our domestic civil engineerig field.
According to the length of yarn, it has 2 types: short filament and long filament fibers.
It is made from polyester or polypropylene filament, and formed into a network and consolidation. The inside fiber are arranged into a three-dimensional structure. It is not only good mechanical properties, but also has a good vertical and horizontal drainage performance and good extension properties and high resistance to alkali biological and acid, anti-aging and other chemical factors. Meanwhile, its advantage includes filtration performance, tortuous pore distribution, a wide pore size range, excellent permeability.
Filament non woven geotextile are needle punched together to get the stable 3D with highter tensile strength fabric, therefore the tensile strength of filament is higher than that of short filament no-woven geotextile. The fiber is soft and has a certain tear resistance, so it has good functions of protection, sewage filtration, reinforcement and water filtration. Its specifications range: 100 g/㎡ -- 800 g/㎡. The main material is polyester and polypropylene fiber contributing to its excellent deformation adaptability, filtration, durability, water permeability and plane drainage capacity.
Geosynthetic Fabric Features
| No. |
Item Index Specification |
100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 800 | Remarks |
| 1 | Unit area mass deviation,% | -6 | -6 | -6 | -5 | -5 | -5 | -5 | -5 | -4 | -4 | -4 | |
| 2 | thickness, mm ≥ | 0.8 | 1.2 | 1.6 | 1.9 | 2.2 | 2.5 | 2.8 | 3.1 | 3.4 | 4.2 | 5.5 | |
| 3 | Width deviation, % | -0.5 | |||||||||||
| 4 | Breaking strength, KN/M ≥ | 4.5 | 7.5 | 10 | 12.5 | 15 | 17.5 | 20.5 | 22.5 | 25 | 30 | 40 | Vertical and horizontal |
| 5 | Elongation at break, % | 40-80 | |||||||||||
| 6 | CBR bursting strength,KN ≥ | 0.8 | 1.4 | 1.8 | 2.2 | 2.6 | 3 | 3.5 | 4 | 4.7 | 5.5 | 7 | |
| 7 | Equivalent aperture,O99(O35),mm | 0.07-0.2 | |||||||||||
| 8 | Vertical permeability coefficient,cm/s | KX(10 -1 -10 -3 ) | K=1.0-9.9 | ||||||||||
| 9 | Tear strength 3,KN ≥ | 0.14 | 0.21 | 0.28 | 0.35 | 0.42 | 0.49 | 0.56 | 0.63 | 0.7 | 0.82 | 1.1 | Vertical and horizontal |
Applications
It is widely applied in filtration, reinforcement, isolation and drainage of weak foundation road, highway, railway, dyke, flood dikes, coastal beach and other projects, especially for saline alkali swamp and landfill.
Geosynthetic Fabric Geotextile Package
packed as rolls with tight belt and woven bags. It can gurantee convenient unloading and protecting product.
