Quick Detail:
Material: PE, polyethelene
Function: Protect,drainage, isolation
Width: 5.8m
Application: Coastal, road, slope protection etc

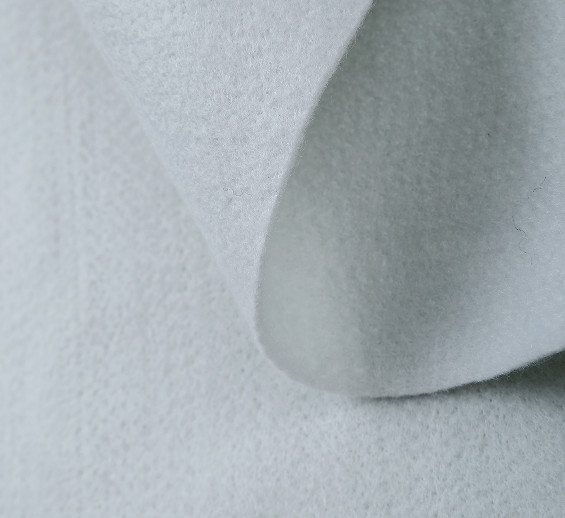

Wanshengli brand short fiber non woven filament geotextile is made from PP polypropylene, and PET polyester, which is a new special geotechnical engineering construction material. It is ok for different thickness, because short filament fabric is stiff, thick, plump and soft. Short non woven fiber filament geotextile is interweaved into net by high technology, advanced equipment and special steps with different kinds of fibers by needling punch and other procedures.
Because of the difference yarn, it has 2 types:
1. short non woven filament geotextile
2. non woven filament fiber geotextile
The short non-woven geotextile filament fiber has resistance of high temperature up to 230℃ to guanrantee maintain structure stability, high flat drainage, high elongation under certain stress, high creep resistance and vertical permeability, so can be applied in uneven and irregular bases. Many geotechnical engineering projects can use short non-woven geotextile filament fiber as materials.
Geosynthetic Fabric Features
| No. |
Item Index Specification |
100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 800 | Remarks |
| 1 | Unit area mass deviation,% | -8 | -8 | -8 | -8 | -7 | -7 | -7 | -7 | -6 | -6 | -6 | |
| 2 | thickness, mm ≥ | 0.9 | 1.3 | 1.7 | 2.1 | 2.4 | 2.7 | 3 | 3.3 | 3.6 | 4.1 | 5 | |
| 3 | Width deviation, % | -0.5 | |||||||||||
| 4 | Breaking strength, KN/M ≥ | 0.08 | 0.12 | 0.16 | 0.2 | 0.24 | 0.28 | 0.33 | 0.38 | 0.42 | 0.46 | 0.6 | Vertical and horizontal |
| 5 | Elongation at break, % | 25-100 | |||||||||||
| 6 | CBR bursting strength,KN ≥ | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3.2 | 4 | |
| 7 | Equivalent aperture,O99(O35),mm | 0.07-0.2 | |||||||||||
| 8 | Vertical permeability coefficient,cm/s | KX(10 -1 -10 -3 ) | K=1.0-9.9 | ||||||||||
| 9 | Tear strength 3,KN ≥ | 0.08 | 0.12 | 0.16 | 0.2 | 0.24 | 0.28 | 0.33 | 0.38 | 0.42 | 0.4 | 0.6 | Vertical and horizontal |
Geosynthetic fabric is a new engineering construction material as standardized product it has widly used in our domestic civil engineerig field.
Applications
Geosynthetic Fabric Geotextile Package
packed as rolls with tight belt and woven bags. It can gurantee convenient unloading and protecting product.
