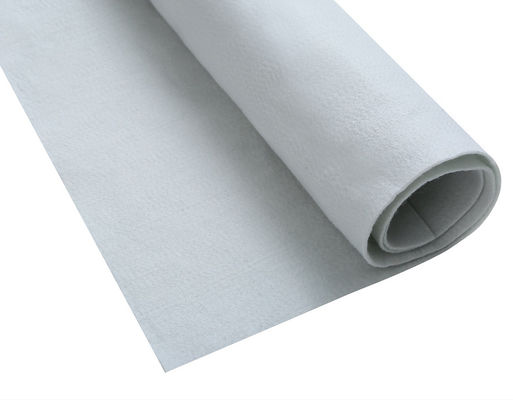

ODM Geosynthetic Reinforcement Fabric Geotextiles For Road Construction

Basic Information
Place of Origin: Luan, China
Brand Name: WANSHENGLI
Certification: BV, GB, ISO,CE, SGS
Model Number: 800g
Minimum Order Quantity: 1160sqm
Price: 0.25 USD ~3.8 USD per sqm
Packaging Details: Woven Plastic Bag packing
Delivery Time: As per your quantity
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram or through alibaba trade assurance
Supply Ability: 50000 sqm per day
Detail Information
Material: PE Color: White Blue Black
Application: Asphalt Pavement, Sewage Plant, Coastal Beach, Road, Railway, Da Length: 50-200m/roll Or As Per Your Request
Width: 5.8m Gross Weight: 800g
Sample: Provide MOQ: 1160 Sqm
High Light:

ODM geosynthetic reinforcement fabric

,

800g geosynthetic reinforcement fabric

,

800g geotextiles for road construction


Product Description

800gg/M2 Geotextile Drainage Fabric Nonwoven Geotextile Geosynthetic Fabric For Retaining Wall

Geosynthetic Fabric Short Non Woven Geotextile


Quick Detail:

Material: polypropylene, PE

Function: protect,drainage, isolation
Width: 5.8m

Thickness: 5.5mm
Application: Mining project



Wanshengli brand short fiber non woven filament geotextile is made from PP polypropylene, and PET polyester, which is a new special geotechnical engineering construction material. It is ok for different thickness, because short filament fabric is stiff, thick, plump and soft. Short non woven fiber filament geotextile is interweaved into net by high technology, advanced equipment and special steps with different kinds of fibers by needling punch and other procedures.



Because of the difference yarn, it has 2 types:



1. short non woven filament geotextile

2. non woven filament fiber geotextile



The short non-woven geotextile filament fiber has resistance of high temperature up to 230℃ to guanrantee maintain structure stability, high flat drainage, high elongation under certain stress, high creep resistance and vertical permeability, so can be applied in uneven and irregular bases. Many geotechnical engineering projects can use short non-woven geotextile filament fiber as materials.



Geosynthetic Fabric Features



  • Soil separation
  • Filtration
  • Erosion & sediment control
  • Sub-grade stabilization
  • Protection for geomembrane liners
  • Shoreline protection
  • Drainage




ODM Geosynthetic Reinforcement Fabric Geotextiles For Road Construction 0

Product Parameter

No.

Item

Index

Specification

100 150 200 250 300 350 400 450 500 600 800 Remarks
1 Unit area mass deviation,% -8 -8 -8 -8 -7 -7 -7 -7 -6 -6 -6
2 thickness, mm ≥ 0.9 1.3 1.7 2.1 2.4 2.7 3 3.3 3.6 4.1 5
3 Width deviation, % -0.5
4 Breaking strength, KN/M ≥ 0.08 0.12 0.16 0.2 0.24 0.28 0.33 0.38 0.42 0.46 0.6 Vertical and horizontal
5 Elongation at break, % 25-100
6 CBR bursting strength,KN ≥ 0.3 0.6 0.9 1.2 1.5 1.8 2.1 2.4 2.7 3.2 4
7 Equivalent aperture,O99(O35),mm 0.07-0.2
8 Vertical permeability coefficient,cm/s KX(10 -1 -10 -3 ) K=1.0-9.9
9 Tear strength 3,KN ≥ 0.08 0.12 0.16 0.2 0.24 0.28 0.33 0.38 0.42 0.4 0.6 Vertical and horizontal



Geosynthetic fabric is a new engineering construction material as standardized product it has widly used in our domestic civil engineerig field.



Applications

  • As the isolation layer and for inverted layer dam, slope protection, road, railway, airfield runway.
  • Reinforcement and drainage for soil slope,retaining wall.
  • Reinforcement and drainage for Asphalt pavement, cement concrete pavement and subgrade enhancement. Both rigid and flexible road pavement applicable.
  • Soft foundation treatment/ soft soil improvement of port project; the reinforcement and drainage for beach dike, seaport wharf and seawall/bulwark.

ODM Geosynthetic Reinforcement Fabric Geotextiles For Road Construction 1

ODM Geosynthetic Reinforcement Fabric Geotextiles For Road Construction 2



Geosynthetic Fabric Geotextile Package



packed as rolls with tight belt and woven bags. It can gurantee convenient unloading and protecting product.



ODM Geosynthetic Reinforcement Fabric Geotextiles For Road Construction 3

ODM Geosynthetic Reinforcement Fabric Geotextiles For Road Construction 4

 ODM Geosynthetic Reinforcement Fabric Geotextiles For Road Construction 5

ODM Geosynthetic Reinforcement Fabric Geotextiles For Road Construction 6ODM Geosynthetic Reinforcement Fabric Geotextiles For Road Construction 7ODM Geosynthetic Reinforcement Fabric Geotextiles For Road Construction 8ODM Geosynthetic Reinforcement Fabric Geotextiles For Road Construction 9ODM Geosynthetic Reinforcement Fabric Geotextiles For Road Construction 10ODM Geosynthetic Reinforcement Fabric Geotextiles For Road Construction 11
