300sqm Hdpe Textured Flexible Membrane Liner For Gutter

1100sqm
MOQ
Negotiable
Price
300sqm Hdpe Textured Flexible Membrane Liner For Gutter
Features Gallery Product Description Request A Quote
Features
Specifications
Product Material: 100% Virgin Material
Liner Surface: Rough
Liner Length: 50m
Width: 6m
Sample: Support
Minimum Order: 1100 Sqm
Elongation At Break: 100%
Density: 0.94
High Light:

300sqm flexible membrane liner

,

Gutter flexible membrane liner

,

300sqm gutter liner membrane

Basic Infomation
Place of Origin: Luan, China
Brand Name: Wanshengli
Certification: ISO, ASTM,SONCAP
Model Number: 300g sqm
Payment & Shipping Terms
Packaging Details: Woven Plastic bags or as your request
Delivery Time: According to quantity
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000 sqm per day
Product Description



Density 0.94g Per Cm3 High Punch Resistance 300sqm Hdpe Textured Geomembrane Rough Geomembrane



Quick Detail:



  • Geomembrane material: HDPE material
  • Geomembrane length: 50m,100m
  • Geomembrane width: 3m, 6m
  • Geomembrane thickness: 1.0mm~3.0mm
  • Standard: ASTM,GB, ISO
  • Application: Dam, water tank
  •

Hdpe textured geomembrane is the impermeable synthetic membrane liner and geotechnical engineering materials which are widely used for solid waste containment, mining and water containment applications.



Our HDPE textured geomembrane with rough surface is a new type of anti-seepage material. Single rough surface and double rough surface increase friction coefficient and anti-skid function, which is more suitable for steep slope and vertical anti-seepage and providing engineering stability.



HDPE textured geomembrane product is made from 97.5% high density polyethylene (HDPE) and 2.5% Carbon black/anti-aging agent/anti-oxygen/UV absorbent/stabilizer and other accessory, which is widely used for fishpond, landfill project and water containment environment and mining environment. Anti-seepage HDPE texture geomembrane is made of best quality high density polyethylene (HDPE) with specially formulated and original polyethylene resin, combined with specified quantity carbon black, antioxidant, anti-aging agent and UV resistance components, which contributes to its excellent resistance to UV radiation and being suitable for different conditions.



Wanshengli Brand hdpe textured geomembrane has excellent temperature adaptability, weldability, tolerance and aging resistance, chemical corrosion resistance, environmental stress cracking resistance and anti pierce performance. Therefore, it is especially suitable for underground engineering, mining engineering, sewage and waste residue treatment plant as impermeable materials.

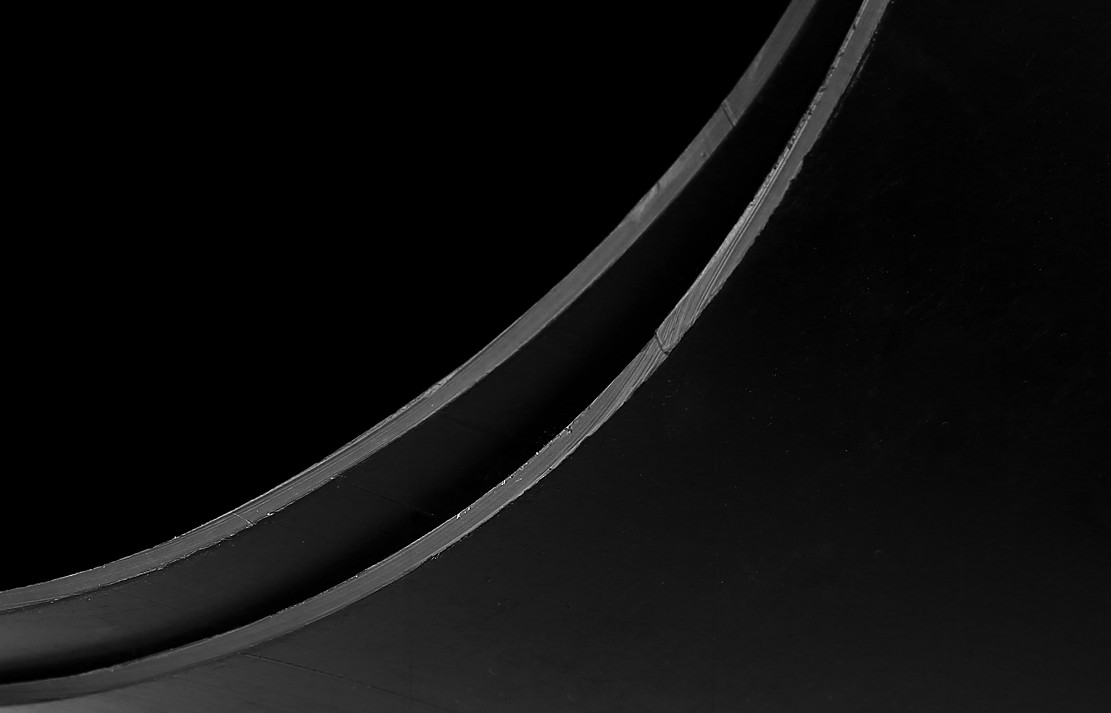

300sqm Hdpe Textured Flexible Membrane Liner For Gutter 0



Advantages:



  • Good physical and mechanic performance
  • High tearing resistance, strong deformation adaptability
  • Puncture-resisting, aging resisting, ultra-violet radiation, oil and salt, and corrosion resistance
  • Good adaptability to high and low temperature, non-toxicity, long service life
  • Good waterproof, drainage, anti-seepage and damp proof effects
  • Complete width and thickness specifications, low cost and easy installation.



300sqm Hdpe Textured Flexible Membrane Liner For Gutter 1



Product Parameter






Properties
Test       Test Value       Testing
    Method               Frequency
      30 mils 40 mils 50 mils 60 mils 80 mils 100 mils 120 mils (minimum)
Thickness mils (min. ave.) D 5994 nom. (-5%) nom. (-5%) nom. (-5%) nom. (-5%) nom. (-5%) nom. (-5%) nom. (-5%) per roll
· lowest individual for 8 out of 10 values   -10% -10% -10% -10% -10% -10% -10%
· lowest individual for any of the 10 values   -15% -15% -15% -15% -15% -15% -15%
Asperity Height mils (min. ave.) (1) D 7466 10 mil 10 mil 10 mil 10 mil 10 mil 10 mil 10 mil every 2nd roll (2)
Density (min. ave.) D 1505/D 792 0.940 g/cc 0.940 g/cc 0.940 g/cc 0.940 g/cc 0.940 g/cc 0.940 g/cc 0.940 g/cc 200,000 lb
Tensile Properties (min. ave.) (3) D 6693               20,000 lb
· yield strength Type IV 63 lb/in. 84 lb/in. 105 lb/in. 126 lb/in. 168 lb/in. 210 lb/in. 252 lb/in.
· break strength   45 lb/in. 60 lb/in. 75 lb/in. 90 lb/in. 120 lb/in. 150 lb/in. 180 lb/in.
· yield elongation   12% 12% 12% 12% 12% 12% 12%
· break elongation   100% 100% 100% 100% 100% 100% 100%
Tear Resistance (min. ave.) D 1004 21 lb 28 lb 35 lb 42 lb 56 lb 70 lb 84 lb 45,000 lb
Puncture Resistance (min. ave.) D 4833 45 lb 60 lb 75 lb 90 lb 120 lb 150 lb 180 lb 45,000 lb
Stress Crack Resistance (4) D 5397 300 hr. 300 hr. 300 hr. 300 hr. 300 hr. 300 hr. 300 hr. per GRI GM10
    (App.)
Carbon Black Content (range) D 4218 (5) 2.0-3.0 % 2.0-3.0 % 2.0-3.0 % 2.0-3.0 % 2.0-3.0 % 2.0-3.0 % 2.0-3.0 % 20,000 lb
Carbon Black Dispersion D 5596 note (6) note (6) note (6) note (6) note (6) note (6) note (6) 45,000 lb
Oxidative Induction Time (OIT) (min. ave.) (7)                 200,000 lb
(a) Standard OIT D 3895 100 min. 100 min. 100 min. 100 min. 100 min. 100 min. 100 min.
  — or —
(b) High Pressure OIT D 5885 400 min. 400 min. 400 min. 400 min. 400 min. 400 min. 400 min.
Oven Aging at 85°C (7), (8) D 5721
(a) Standard OIT (min. ave.) - % retained after 90 days D 3895 55% 55% 55% 55% 55% 55% 55% per each
  — or —                 formulation
(b) High Pressure OIT (min. ave.) - % retained after 90 days D 5885 80% 80% 80% 80% 80% 80% 80%
UV Resistance (9) D 7238
(a) Standard OIT (min. ave.) D 3895 N.R. (10) N.R. (10) N.R. (10) N.R. (10) N.R. (10) N.R. (10) N.R. (10) per each
  — or —                 formulation
(b) High Pressure OIT (min. ave.) - % retained after 1600 hrs (11) D 5885 50% 50% 50% 50% 50% 50% 50%





Item Parameter
Thickness (mm) 1.0mm 1.25mm 1.5mm 2.0mm 2.5mm 3.0mm
Coarse height(mm) 0.25
Minimum Density ( g/cm3) 0.94
Break strength (N/mm) ≧10 ≧13 ≧16 ≧21 ≧26 ≧32
Elongation at break (%) 100
Angle tear load (N) ≧125 ≧156 ≧187 ≧249 ≧311 ≧374
Puncture strength (N) ≧267 ≧333 ≧400 ≧534 ≧667 ≧800
Environmental stress cracking resistance hr



300

Carbon black content (%) 2.0-3.0
Size Stability(%) ±2





HDPE Geomembrane recommend thickness of application



  • Aquaculture (including fish pond, shrimp pond, seaweed farming etc. )
  • normally use 0.25mm~0.5mm
  • Agriculture( including lotus farming, reservoir, drinking water tank, irrigation system etc.) normally use 0.5mm~1.0mm
  • Landscape (including artificial lake, river, slop protection, greening waterproof etc.) normally use 0.5mm~1.0mm
  • Water conservancy ( including dam anti-seepage, strengthen etc.)
  • normally use 0.75mm~1.5mm
  • Roof anti-seepage ( roof planting, roof waterproof, roof garden waterproof etc.)
  • normally use 0.5mm~1.0mm
  • Underground anti-seepage ( including traffic, subway and roadway’s foundation strengthen, workshop waterproof)
  • normally use 0.5mm~1.0mm
  • Environmental protection (including landfill, sewage treatment work, power regulating reservoir, industrial and hospital solid waste)
  • normally use 1.0mm~2.0mm
  • Petrochemical ((including refinery plant, chemical reaction camera, inner liners of setting tank, secondary liner etc. )
  • normally use 0.5mm~1.0mm
  • Mining (including Washing tank, ash yard, dissolution tank, sedimentation tank, bottom anti-seepage of tailings etc.)
  • normally use 1.0mm~2.0mm



Package



All products will be packed in woven bags with belt, and we gurantee the product good when customer get it.



300sqm Hdpe Textured Flexible Membrane Liner For Gutter 2

300sqm Hdpe Textured Flexible Membrane Liner For Gutter 3

300sqm Hdpe Textured Flexible Membrane Liner For Gutter 4300sqm Hdpe Textured Flexible Membrane Liner For Gutter 5300sqm Hdpe Textured Flexible Membrane Liner For Gutter 6300sqm Hdpe Textured Flexible Membrane Liner For Gutter 7300sqm Hdpe Textured Flexible Membrane Liner For Gutter 8300sqm Hdpe Textured Flexible Membrane Liner For Gutter 9300sqm Hdpe Textured Flexible Membrane Liner For Gutter 10300sqm Hdpe Textured Flexible Membrane Liner For Gutter 11300sqm Hdpe Textured Flexible Membrane Liner For Gutter 12
