High Density Polyethylene Geosynthetic Membrane HDPE Geomembrana For Water Reservoir

Basic Information
Place of Origin: Luan, China
Brand Name: Wanshengli
Certification: ISO9001/ISO14001/OHSAS18001
Model Number: Customized
Minimum Order Quantity: 1000sqm
Price: 0.49USD~3.5USD per sqm
Packaging Details: Plastic bags or as your request
Delivery Time: 5~8 working days
Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000 sqm per day
Detail Information
Main Material: HDPE Product Package: Woven Plastic Bag
Description: Chemical Stabilized Hdpe Plastic Membrane Length: 50m
Width: 6m Usage: Environment Protection
Thickness: 0.25mm To 2.0mm Product Sample: Free Provided
High Light:

High Density Geosynthetic Membrane

,

Reservoir Geosynthetic Membrane

,

HDPE high density polyethylene geomembrane


Product Description

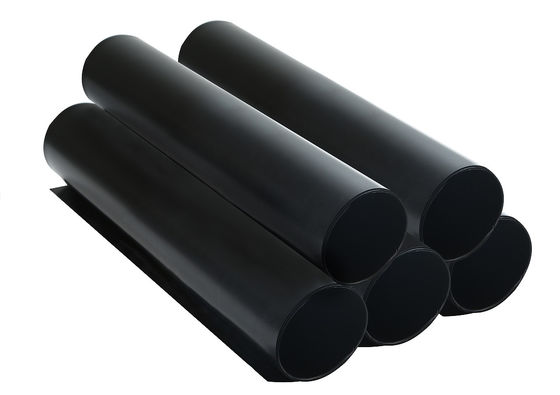

High Density Polyethylene Geosynthetic Membrane HDPE Geomembrane For Water Reservoir


Double smooth Geomembrane


Our double smooth hdpe geomembrane is combined of 97.5% high density polyethylene material and about 2.5% carbon black and other material, products with all specifications and size.



High Density Polyethylene Geosynthetic Membrane HDPE Geomembrana For Water Reservoir 0



Product Parameter



Thickness 0.25mm 0.35mm 0.5mm 0.75mm 1.0mm 1.25mm 1.5mm 2.0mm
Density g/m2 ≥0.94
Tensile yield strength (N/mm) 3.75 5 7.5 11 15 18 22 29
Tensile breaking strength (N/mm) 6.75 19 13.5 20 27 33 40 53
Elongation at yield(%) ≥12
Elongation at break(%) ≥700
Puncture strength(N) 80 150 160 240 320 400 480 640
Angle tear load 31.25 45 62.5 93 125 160 190 250
Carbon black content(%) 2.0-3.0
85℃ aging after 90 days high pressure 55



Appications



1) Domestic and Hazardous Waste landfills

2) Landfill closures
3) Heap leach mining and tailing dams
4) Biogas Management
5) Floating Covers
6) Waste water treatment reservoirs
7) Water conveyance channels and reservoirs
8) Temporary tanks
9) Industrial sludge storage and drying ponds
10) Secondary containment
11) Architectural ponds and lakes
12) Brine evaporation ponds
13) Aquaculture ponds
14) Food and water grade reservoirs and tanks



High Density Polyethylene Geosynthetic Membrane HDPE Geomembrana For Water Reservoir 1

High Density Polyethylene Geosynthetic Membrane HDPE Geomembrana For Water Reservoir 2

High Density Polyethylene Geosynthetic Membrane HDPE Geomembrana For Water Reservoir 3

High Density Polyethylene Geosynthetic Membrane HDPE Geomembrana For Water Reservoir 4

High Density Polyethylene Geosynthetic Membrane HDPE Geomembrana For Water Reservoir 5

High Density Polyethylene Geosynthetic Membrane HDPE Geomembrana For Water Reservoir 6

High Density Polyethylene Geosynthetic Membrane HDPE Geomembrana For Water Reservoir 7

High Density Polyethylene Geosynthetic Membrane HDPE Geomembrana For Water Reservoir 8

High Density Polyethylene Geosynthetic Membrane HDPE Geomembrana For Water Reservoir 9
