Quick Detail:
Material: polyethelene, polyester
Weight: 110g 120g 150g 200g
Ecological bag is a kind of high strength anti-uv anti-freezing and thawing anti-acid and alkali ecological synthetic material, is a new high-tech special material, with high strength anti-uv anti-acid and alkali anti-corrosion anti-freezing and thawing can reach more than 50 years of non-degradation, it is resistant to moisture, does not absorb water, does not damage the bag, does not deform, and is insoluble in polluted liquid.

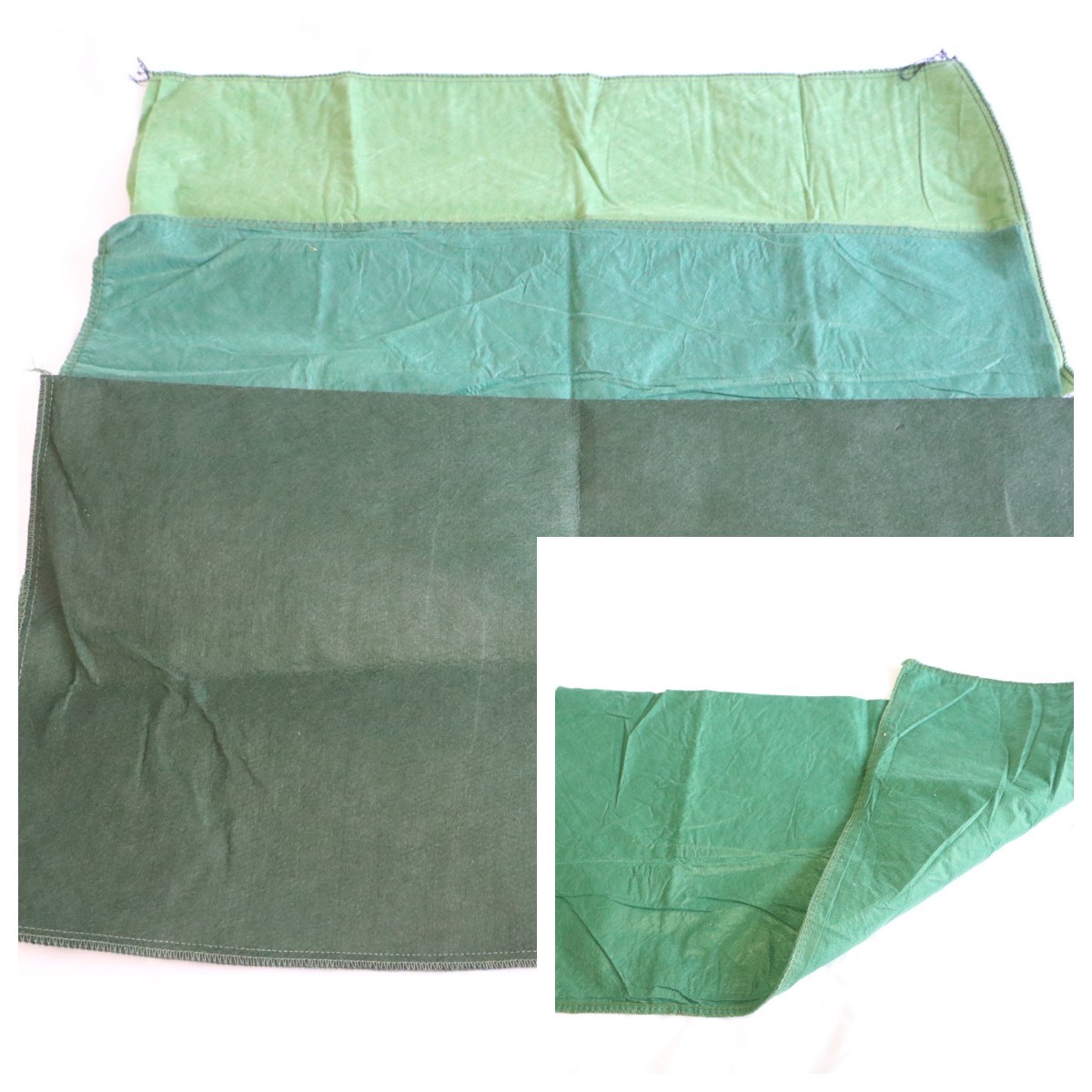

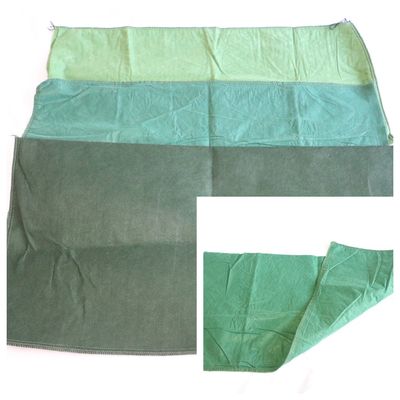

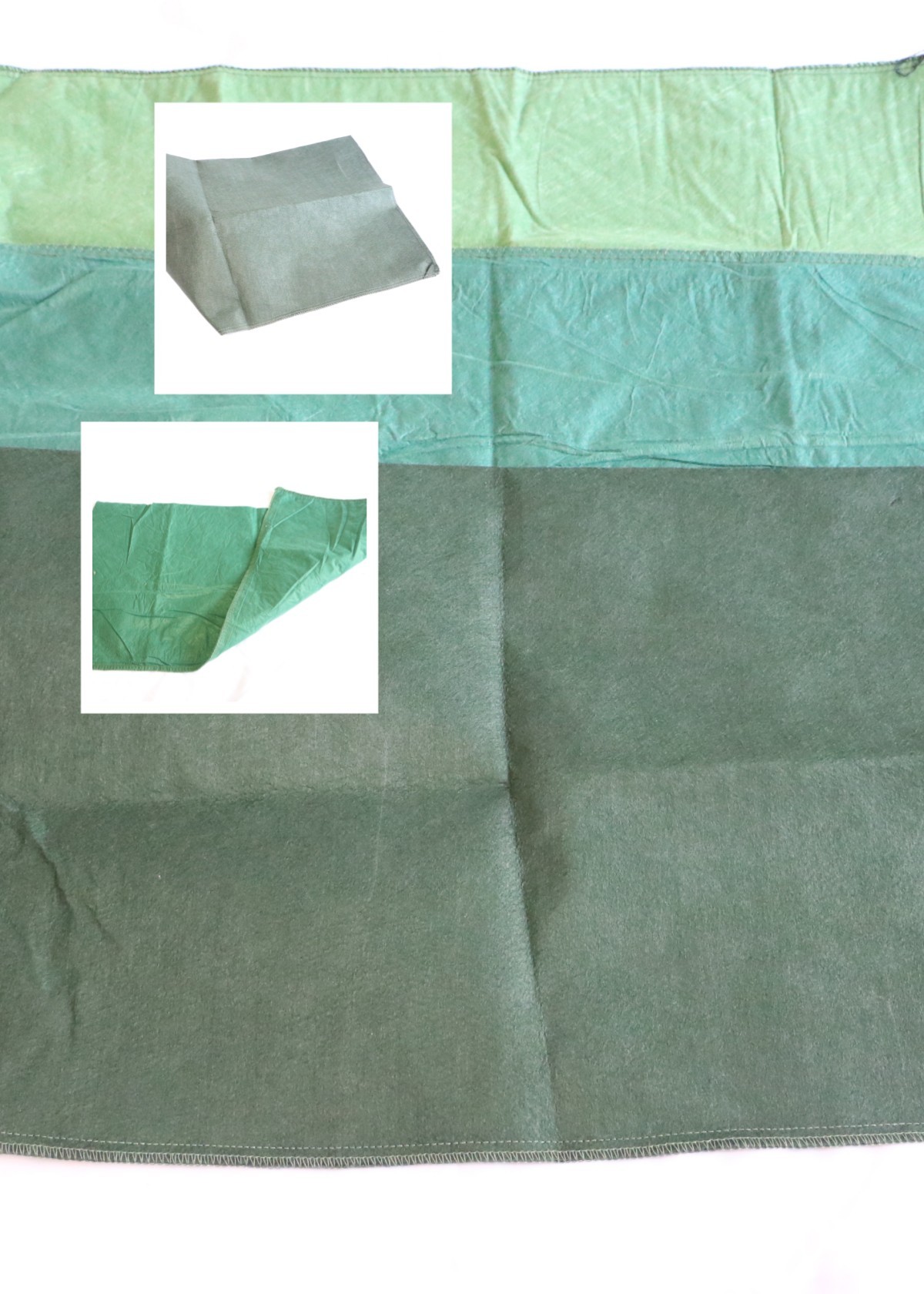

Geobag (Ecological protection bag) is made of double-sided ironing needle punched non-woven fabrics made of polypropylene (PP) orpolyester fiber (PET).It is an ecological synthetic material with high-strength anti-ultraviolet, freeze-thaw resistance,
corrosion resistance, acid and alkali resistance. It is a new high-tech special material, geobags can reach more than 50 years
without degradation and truly achieve no pollution.
Property of Ecological Bag for River Bank Road Railway Highway Tunnel
I. With the advantages of anti-UV, anti-aging, non-toxic, no combustion-supporting, bag rip no stretch
2. Bags are soft with good integral, permeability is strong and scouring resistance, good durable performance
3. Good plasticity and construction process is simple
4. Strong corrosion resistance, resistance to microbes, high s oil stability, easy for plant growth
5. Comprehensive fu nctions of environmental protection, ecological afforestation, soil and water conservation, forming of
ecological slope protection system
Application
Geobag (Ecological protection bag) is mainly used to construct flexible ecological slopes;
1. Ecological restoration: both sides of rivers, re-greening of mines, shores of seas and lakes, treatment of surface landslides,
culvert openings, drainage ditches, soil erosion, irrigation systems, constructed wetlands, roof greening, etc.
2. Infrastructure construction: road slope protection, river and lake slope protection, military facilities and emergency flood
control, shelters, flood control dams, etc.
Geosynthetic Fabric Features
| Product | Capacity | Thickness | Tensile strength | Elongation at break |
| Ecological bag | 50-60kg soil material | 80-120 silk | ≥4.5kn/m | ≥10 ％ |
| ≥4.0kn/m | ≥15％ |
| Nominal fracture strength (KN/m) |
3 |
5 |
8 |
10 |
15 |
20 |
25 |
30 |
40 |
|
| Fracture strength (VERTICAL and vertical) (KN/m) |
3.0 |
5.0 |
8.0 |
10.0 |
15.0 |
20.0 |
25.0 |
30.0 |
40.0 |
|
| Nominal breaking strength corresponds to elongation (%) | 20~100 | |||||||||
| CBR top breaking strength (KN≥) | 0.6 | 1.0 | 1.4 | 1.8 | 2.5 | 3.2 | 4.0 | 5.5 | 7.0 | |
| Mass deviation rate per unit area (%) | ±5 | |||||||||
| Equivalent aperture 0x0(0S) (mm) | 0.07～0.20 | |||||||||
| Vertical permeability coefficient (cm/s) | KX(10-1～10-3), where K=1.0～9.9 | |||||||||
| Tearing strength (vertical and horizontal) (KN≥) | 0.10 | 0.15 | 0.20 | 0.25 | 0.40 | 0.50 | 0.65 | 0.80 | 1.0 | |
Geosynthetic Fabric Geotextile Package
packed as rolls with tight belt and woven bags. It can gurantee convenient unloading and protecting product.
