Quick Detail:
Material: polyethelene, polyester
Weight: 100g 120g 150g 200g

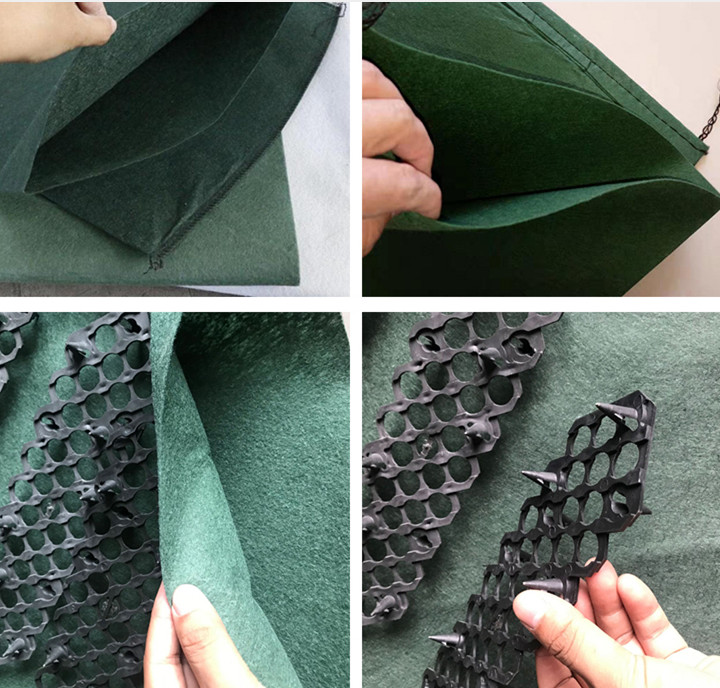

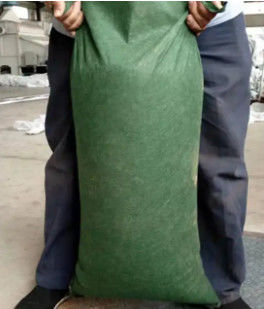

Ecological bag is a kind of high strength anti-uv anti-freezing and thawing anti-acid and alkali ecological synthetic material, is a new high-tech special material, with high strength anti-uv anti-acid and alkali anti-corrosion anti-freezing and thawing can reach more than 50 years of non-degradation, is the real realization of zero pollution.Mainly used in the construction of flexible ecological slope.Eco-bag is a kind of good tool for protecting ecology, because it is resistant to moisture, does not absorb water, does not damage the bag, does not deform, and is insoluble in polluted liquid
Non Woven Geotextile Bags, Eco bags, geobags is the same products, it is usually made of Polyester, polypropylene also workable. For erosion control, flood control and so on.
Made by polyester (PET) or polypropylene (PP) fiber as the raw material, making double sides ironed and pressed needle-punched non-woven geotextile through the spun bonded technology, and then processed to bag with specified dimension, fill soil, sand and fertilizer etc. Padding into bag according to local soil conditions and scientific proportion, and then spray seeds which are suitable for local climate, form a new product which could restore or create a new ecosystem
Property:
1. For ecological restoration, infrastructure construction, landscaping and residence;
2. Anti-ultraviolet, anti-humidity, strong corrosion resistance, long service life;
3. In slope engineering, it can replace stone, cement and other materials, greatly reducing project cost
4. With the filtration function of permeable cloth, it has a strong protective and stabilizing effect on soil loss, local debris flow,
slope collapse, etc., and can stabilize the natural slope
Application
Geobag (Ecological protection bag) is mainly used to construct flexible ecological slopes;
1. Ecological restoration: both sides of rivers, re-greening of mines, shores of seas and lakes, treatment of surface landslides,
culvert openings, drainage ditches, soil erosion, irrigation systems, constructed wetlands, roof greening, etc.
2. Infrastructure construction: road slope protection, river and lake slope protection, military facilities and emergency flood
control, shelters, flood control dams, etc.
Landscaping and residential: vertical greening, garden art, commercial residential district, roof garden greening.
Geosynthetic Fabric Features
| Product | Capacity | Thickness | Tensile strength | Elongation at break |
| Ecological bag | 50-60kg soil material | 80-120 silk | ≥4.5kn/m | ≥10 ％ |
| ≥4.0kn/m | ≥15％ |
| Nominal fracture strength (KN/m) |
3 |
5 |
8 |
10 |
15 |
20 |
25 |
30 |
40 |
|
| Fracture strength (VERTICAL and vertical) (KN/m) |
3.0 |
5.0 |
8.0 |
10.0 |
15.0 |
20.0 |
25.0 |
30.0 |
40.0 |
|
| Nominal breaking strength corresponds to elongation (%) | 20~100 | |||||||||
| CBR top breaking strength (KN≥) | 0.6 | 1.0 | 1.4 | 1.8 | 2.5 | 3.2 | 4.0 | 5.5 | 7.0 | |
| Mass deviation rate per unit area (%) | ±5 | |||||||||
| Equivalent aperture 0x0(0S) (mm) | 0.07～0.20 | |||||||||
| Vertical permeability coefficient (cm/s) | KX(10-1～10-3), where K=1.0～9.9 | |||||||||
| Tearing strength (vertical and horizontal) (KN≥) | 0.10 | 0.15 | 0.20 | 0.25 | 0.40 | 0.50 | 0.65 | 0.80 | 1.0 | |
Geosynthetic Fabric Geotextile Package
packed as rolls with tight belt and woven bags. It can gurantee convenient unloading and protecting product.
