Quick Detail:
Material: polyethelene, polyester
Weight: 120g, 150g,180g,200g
Geotextile geobag can completely replace stone, cement and other materials, which can greatly reduce the project cost. After construction, the slope has vegetation covered surface, which makes the excavated slope achieve greening effect and form natural ecological slope. It has the filtering function of water permeability and impervious soil. The slope formed in this way has high water permeability, and has strong protection and stability effect on soil loss, local mud (soil) rock flow and slope collapse.
Our geotextile bag is widely used for erosion control,embankment or slope protection and shoreline stabilization.
Property:
1. For ecological restoration, infrastructure construction, landscaping and residence;
2. Anti-ultraviolet, anti-humidity, strong corrosion resistance, long service life;
3. In slope engineering, it can replace stone, cement and other materials, greatly reducing project cost
4. With the filtration function of permeable cloth, it has a strong protective and stabilizing effect on soil loss, local debris flow,
slope collapse, etc., and can stabilize the natural slope
Application:
Geobag (Ecological protection bag) is mainly used to construct flexible ecological slopes;
1. Ecological restoration: both sides of rivers, re-greening of mines, shores of seas and lakes, treatment of surface landslides, culvert openings, drainage ditches, soil erosion, irrigation systems, constructed wetlands, roof greening, etc.
2. Infrastructure construction: road slope protection, river and lake slope protection, military facilities and emergency flood control, shelters, flood control dams, etc.
3. Landscaping and residential: vertical greening, garden art, commercial residential district, roof garden greening.
Geosynthetic Fabric Features
| Nominal fracture strength (KN/m) |
3 |
5 |
8 |
10 |
15 |
20 |
25 |
30 |
40 |
|
| Fracture strength (VERTICAL and vertical) (KN/m) |
3.0 |
5.0 |
8.0 |
10.0 |
15.0 |
20.0 |
25.0 |
30.0 |
40.0 |
|
| Nominal breaking strength corresponds to elongation (%) | 20~100 | |||||||||
| CBR top breaking strength (KN≥) | 0.6 | 1.0 | 1.4 | 1.8 | 2.5 | 3.2 | 4.0 | 5.5 | 7.0 | |
| Mass deviation rate per unit area (%) | ±5 | |||||||||
| Equivalent aperture 0x0(0S) (mm) | 0.07～0.20 | |||||||||
| Vertical permeability coefficient (cm/s) | KX(10-1～10-3), where K=1.0～9.9 | |||||||||
| Tearing strength (vertical and horizontal) (KN≥) | 0.10 | 0.15 | 0.20 | 0.25 | 0.40 | 0.50 | 0.65 | 0.80 | 1.0 | |

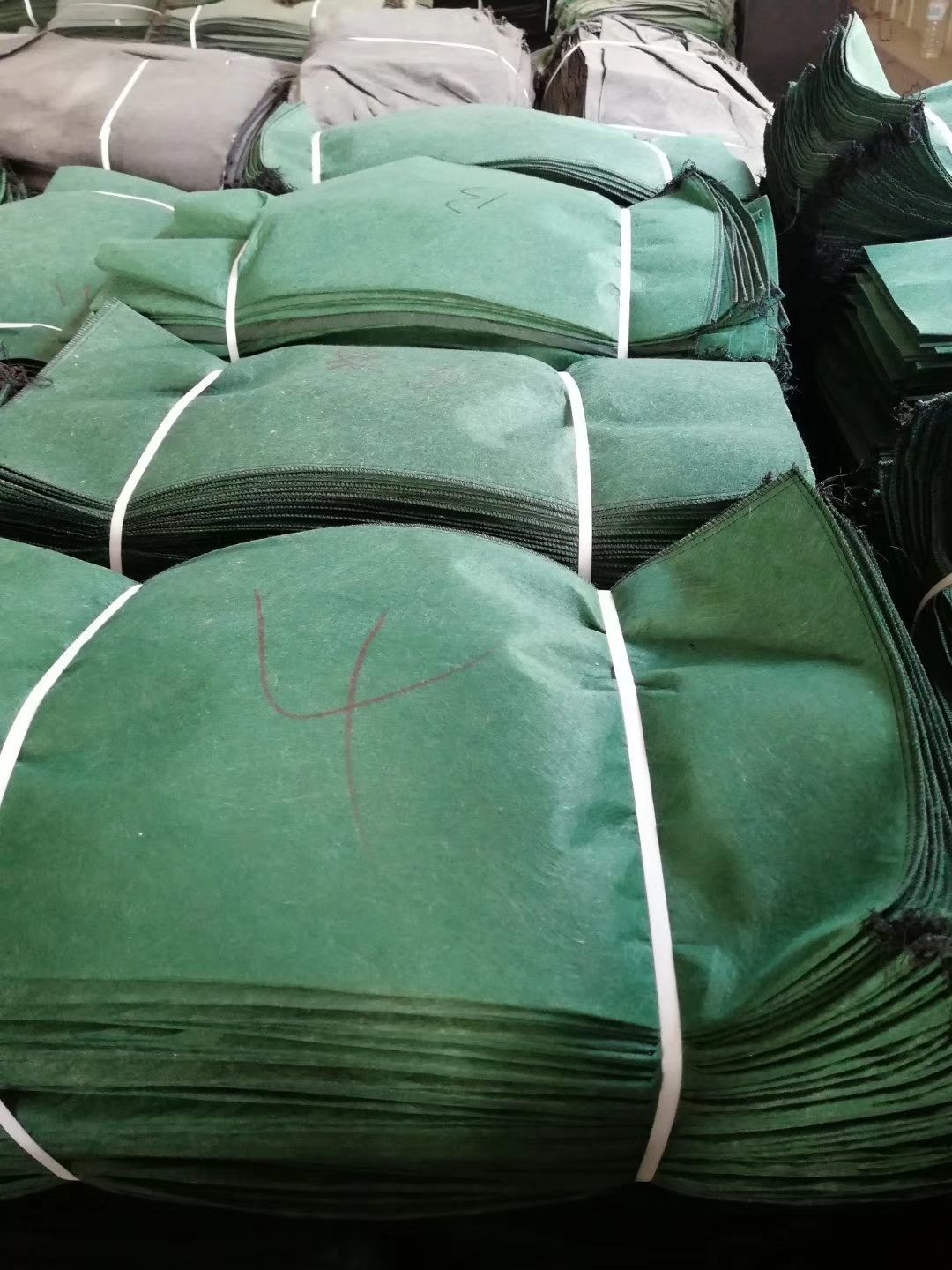

Geosynthetic Fabric Geotextile Package
1. Normally white fabric bag or black PE bag outside
2. As required if any special request.
3. OEM is acceptatble
4. Delivery time: within 10 days after receiving payment
