Textured Perforated Plastic Geocell Manufacturer Gravel Grid Geo Cell Soil Stabilizer HDPE Geocell
Quick Detail:
Material: HDPE material, Plastic, Pet
Height: 50mm~200mm
Function: reinforcement, strengthen
Application: road foundation strengthen
Description:

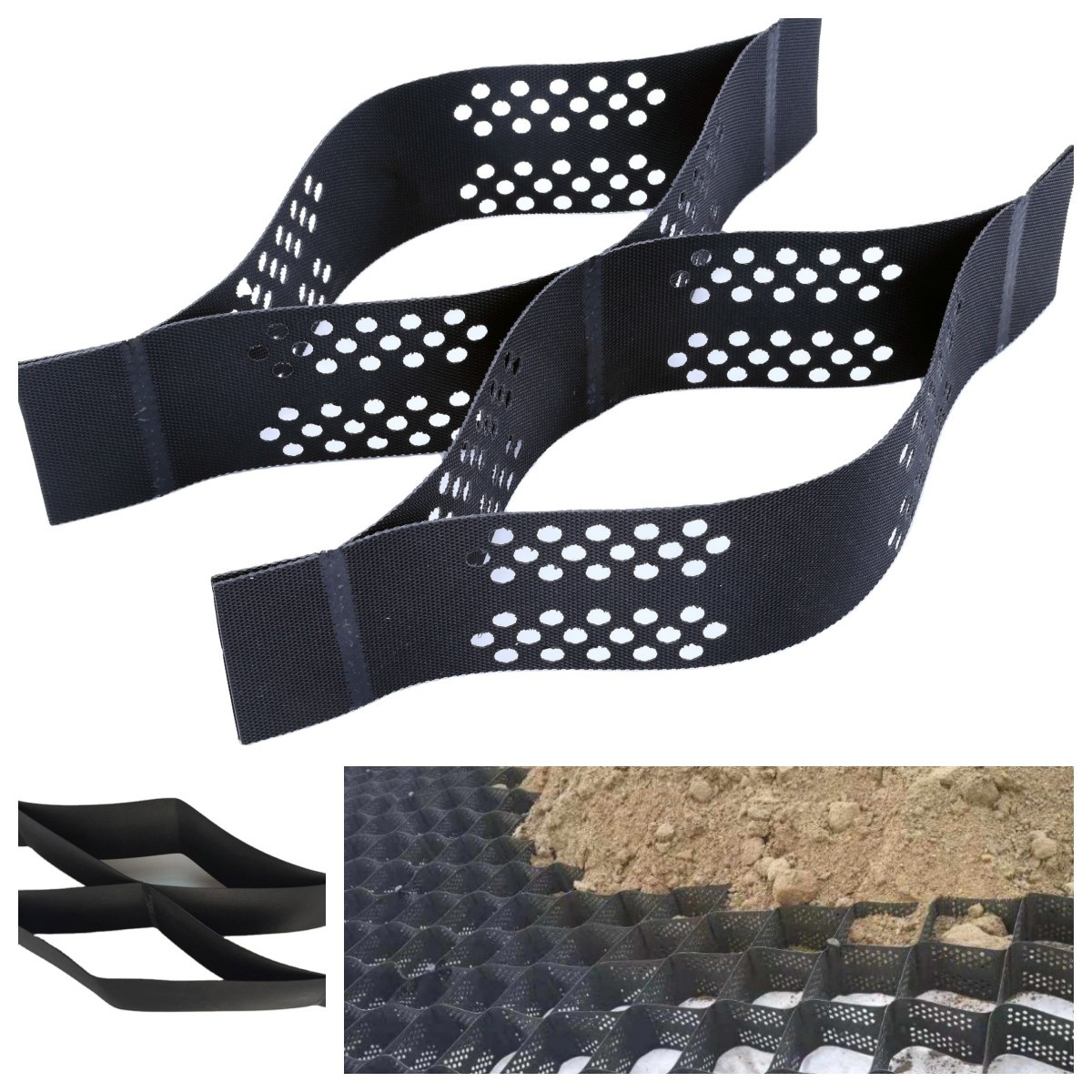

HDPE Geocell is a flexible three-dimensional, honeycomb like structures made from high density polyethylene(HDPE) strips which are ultrasonically bonded together to form an extremely strong configuration. Geocell System can be filled with a wide range of material: aggregate, concrete, sand, soil, etc.

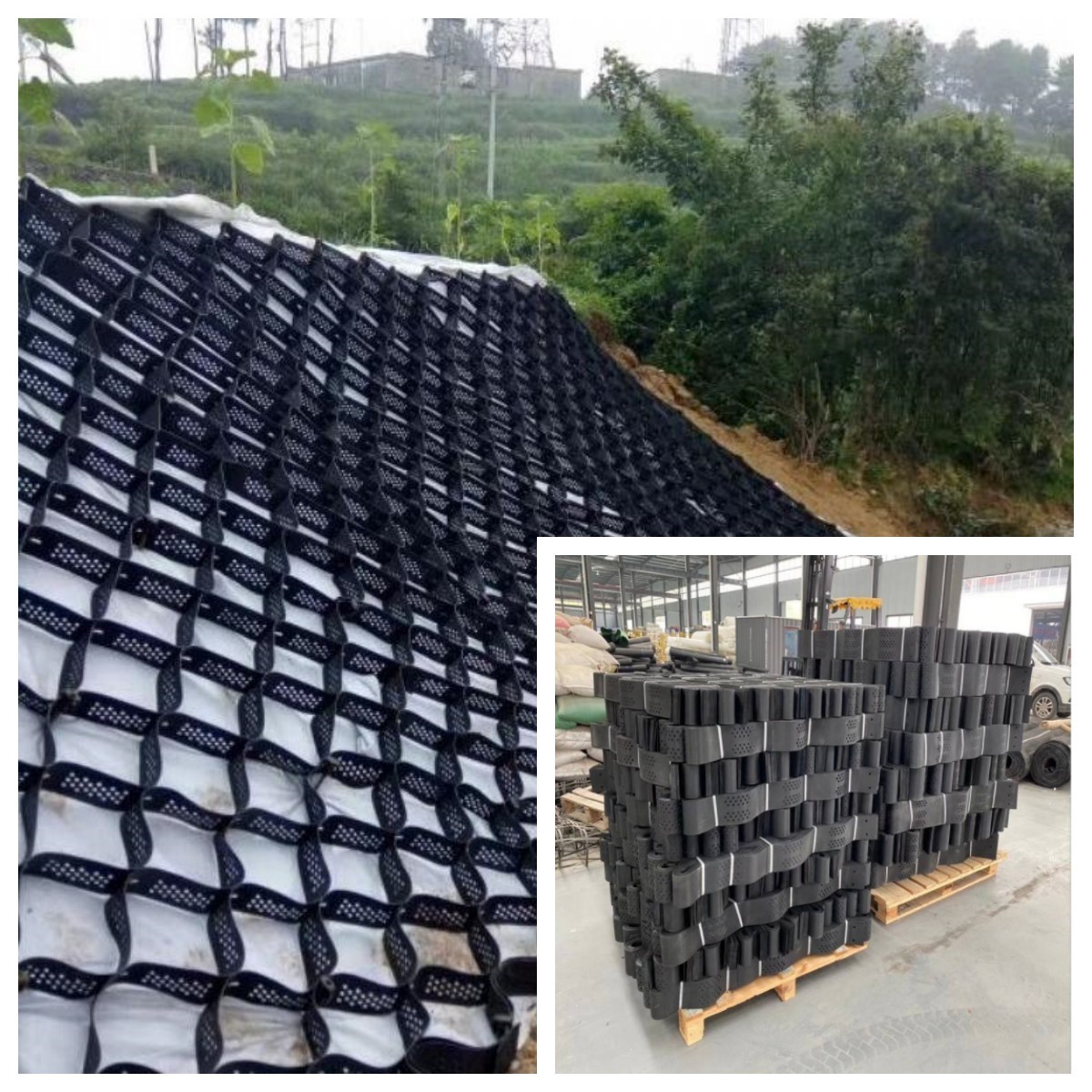

Geocells are efficient and economical for fast-built unpaved roadways and retaining walls, erosion control of slopes, and
storm water control in channels.
It is utilized in horizontal applications and provide a honeycomb style reinforcement of aggregate or soil by confining materials and preventing lateral movement away from the applied load. It serves as a means to increase the load-bearing capacity of a given area, and it does so by distributing said load over each of the different cells, which are filled with the aggregate of your choosing. These cells can be filled with a variety of different aggregates and other lower-quality materials, and can be installed under grass, pavers, and gravel. If you choose to fill with gravel we also carry gravel ok, a clear and permeable binder that further aids in load distribution.
Advantages:
1. It is capable of expansion and contraction, and it can be folded during transportation and stretched during construction.
2. It is formed by light material with stable chemical properties which is resistant to abrasion, photooxidation, acid, and alkali, It is suitable for different soil and desert conditions.
3. It has a higher lateral limit, anti-skid, and anti-deformation, and can effectively enhance the bearing capacity of the roadbed and load distribution.
4. It can meet different engineering needs by changing height, welding distance, and other geometric dimensiones.
product is convenient to connect and can improve construction speed.
Product Data
Product type | Height(mm) | Welding Distance(mm) | Thickness(mm) | Tensile Strength Of Welding Points(N/cm) | Tensile Strength of Connection of Cell( N/cm) | Tensile Strength at Yield of Each Sheet(Mpa) |
Smooth and not perforated | 50≦H≦250 | 330≦A≦1000 | 1.0--1.4 | ≧100 | ≧120 | ≧20 |
Smooth and perforated | 50≦H≦250 | 330≦A≦1000 | 1.0--1.4 | ≧100 | ≧120 | ≧20 |
Textured and not perforated | 50≦H≦250 | 330≦A≦1000 | 1.0--1.7 | ≧100 | ≧120 | ≧20 |
Textured and perforated | 50≦H≦250 | 330≦A≦1000 | 1.0--1.7 | ≧100 | ≧120 | ≧20 |
Specs |
Hight mm |
Welding distance mm |
Tensile strength Mpa |
Weld tensile strength KN |
GS20 | 200 | 400 | 25 | 2.0 |
300 | ||||
GS15 | 150 | 400 | 25 | 1.5 |
330 | ||||
GS10 | 100 | 1000 | 25 | 1.0 |
470 | ||||
400 | ||||
330 | ||||
GS8 | 80 | 1000 | 25 | 0.8 |
470 | ||||
400 | ||||
330 | ||||
GS5 | 50 | 470 | 25 | 0.5 |
400 | ||||
330 |
Products Application:
Gravel Pavements
Parking Lots
Driveways
Access Roads
Trails
Boat ramps
Poolside
Permeable Golf Cart Path
Paver Base Support
Patios
Walkways
Sidewalks
Courtyards
Mud Management
Paddocks
Livestock Management Areas
Corrals
Farm Use
Dirt Roads
Green Roofs
Overflow Parking
CampGrounds
Parks
Installation
Prepare the area by removing old soil, vegetation and debris.
Put a sub-base layer if necessary and grade as necessary.
Pin down one of our drainage fabrics or ground covers if necessary for separation and stability.
Stake out the Geocell's using rebar, stakes or large anchor pins. If necessary cut Geocell ahead of time with a hand saw (recipricating saw works great).
Fill the Geocell with your soil, sand, gravel or rock material and rake level.
Packing:
All products are packed by belts on the wood pallet. we make sure that customers receive the products well. We also accept customer's required packing method.As for shipping service we will choose famous agent for the products to guarantee the goods will reach our client's side on time.
