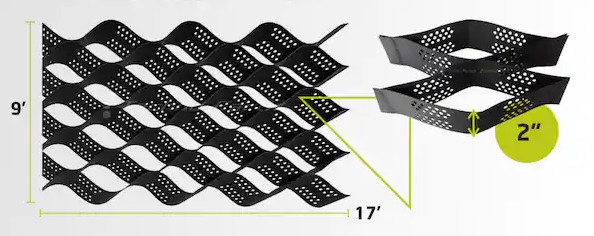

Wanshengli Heavy Load Support HDPE Geocell And Erosion Control HDPE Geocell System
Quick Detail:
Material: HDPE material, Plastic, Pet
Height: 50mm~200mm
Function: reinforcement, strengthen
Application: road foundation strengthen
Description:
The Wanshengli geocell is a load support and erosion control product used to provide strength, stability and erosion control to base layers of soil, sand, gravel and rock. When filled with a suitable aggregate, the Geocell provides a substantial lateral strength and retention that prevents the material from shifting sideways and eroding from heavy or repetitive traffic. The Geocell helps spread any applied weight over a greater area, and significantly reduces weather erosion.
The material is perfect for construction of driveways, road, and trails. It is ideal for use on slopes and embankments to prevent erosion and to keep material in place.
The geocell saves time and money by reducing the amount of material needed to form a solid base layer as well as the time and man-power it takes to spread it. The structural coefficient of a 4” layer of sandy soil is 5 x greater when used with Geocell and has an equivalent structural coefficient of 10” of crushed stone and 12.7” of sandy gravel.
Load support geocell is utilized in horizontal applications and provide a honeycomb style reinforcement of aggregate or soil by confining materials and preventing lateral movement away from the applied load. It serves as a means to increase the load-bearing capacity of a given area, and it does so by distributing said load over each of the different cells, which are filled with the aggregate of your choosing. These cells can be filled with a variety of different aggregates and other lower-quality materials, and can be installed under grass, pavers, and gravel. If you choose to fill with gravel we also carry gravel ok, a clear and permeable binder that further aids in load distribution.
Advantages:
1. It is capable of expansion and contraction, and it can be folded during transportation and stretched during construction.
2. It is formed by light material with stable chemical properties which is resistant to abrasion, photooxidation, acid, and alkali, It is suitable for different soil and desert conditions.
3. It has a higher lateral limit, anti-skid, and anti-deformation, and can effectively enhance the bearing capacity of the roadbed and load distribution.
4. It can meet different engineering needs by changing height, welding distance, and other geometric dimensiones.
product is convenient to connect and can improve construction speed.

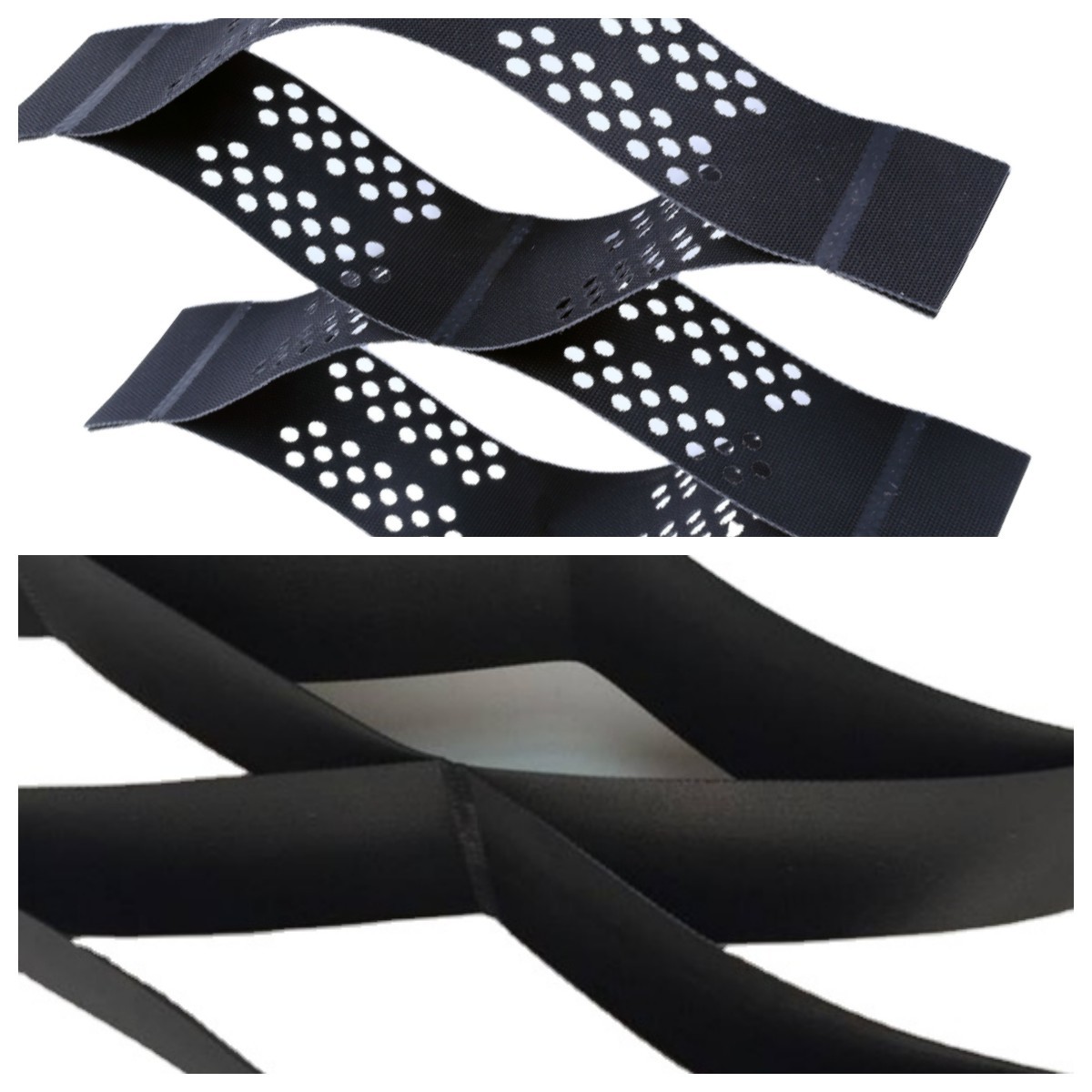

Product Data
| Product type | Height(mm) | Welding Distance(mm) | Thickness(mm) | Tensile Strength Of Welding Points(N/cm) | Tensile Strength of Connection of Cell( N/cm) | Tensile Strength at Yield of Each Sheet(Mpa) |
| Smooth and not perforated | 50≦H≦250 | 330≦A≦1000 | 1.0--1.4 | ≧100 | ≧120 | ≧20 |
| Smooth and perforated | 50≦H≦250 | 330≦A≦1000 | 1.0--1.4 | ≧100 | ≧120 | ≧20 |
| Textured and not perforated | 50≦H≦250 | 330≦A≦1000 | 1.0--1.7 | ≧100 | ≧120 | ≧20 |
| Textured and perforated | 50≦H≦250 | 330≦A≦1000 | 1.0--1.7 | ≧100 | ≧120 | ≧20 |
Products Application:
Gravel Pavements
Parking Lots
Driveways
Access Roads
Trails
Boat ramps
Poolside
Permeable Golf Cart Path
Paver Base Support
Patios
Walkways
Sidewalks
Courtyards
Mud Management
Paddocks
Livestock Management Areas
Corrals
Farm Use
Dirt Roads
Green Roofs
Overflow Parking
CampGrounds
Parks
Installation
Prepare the area by removing old soil, vegetation and debris.
Put a sub-base layer if necessary and grade as necessary.
Pin down one of our drainage fabrics or ground covers if necessary for separation and stability.
Stake out the Geocell's using rebar, stakes or large anchor pins. If necessary cut Geocell ahead of time with a hand saw (recipricating saw works great).
Fill the Geocell with your soil, sand, gravel or rock material and rake level.
Packing:
All products are packed by belts on the wood pallet. we make sure that customers receive the products well. We also accept customer's required packing method.As for shipping service we will choose famous agent for the products to guarantee the goods will reach our client's side on time.
