Place of Origin: | Anhui, Luan, China |
---|---|
Brand Name: | wanshengli |
Certification: | GB, ISO, SGS |
Model Number: | 20KN, 30KN,40KN,50KN |
Minimum Order Quantity: | 1000 sqm |
Price: | 1.25 USD ~8.5 USD per sqm |
Packaging Details: | Plastic bags or as your request |
Delivery Time: | 5~8 working days according to actual quantity |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 50000 sqm per day |
Material: | Virgin HDPE Material | Length: | 50-100m/roll Or As Per Your Request |
---|---|---|---|
Width: | 2-8m Or As Your Request | MOQ: | 1000 Sqm |
High Light: | Construction HDPE Uniaxial Geogrid,polypropylene HDPE Uniaxial Geogrid,Polypropylene geogrid slope stabilization |

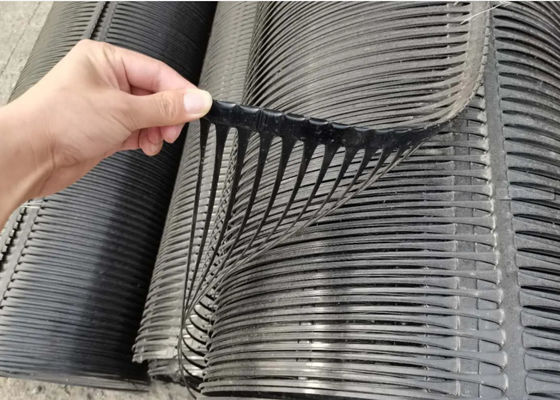

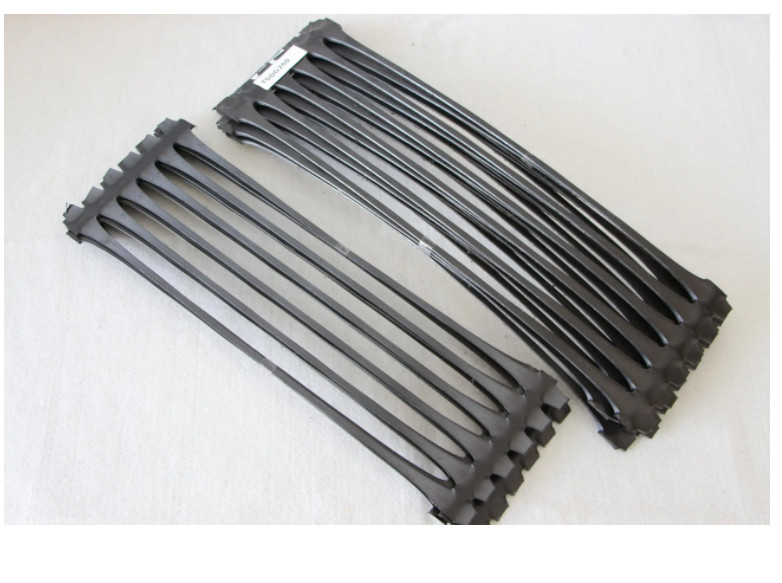

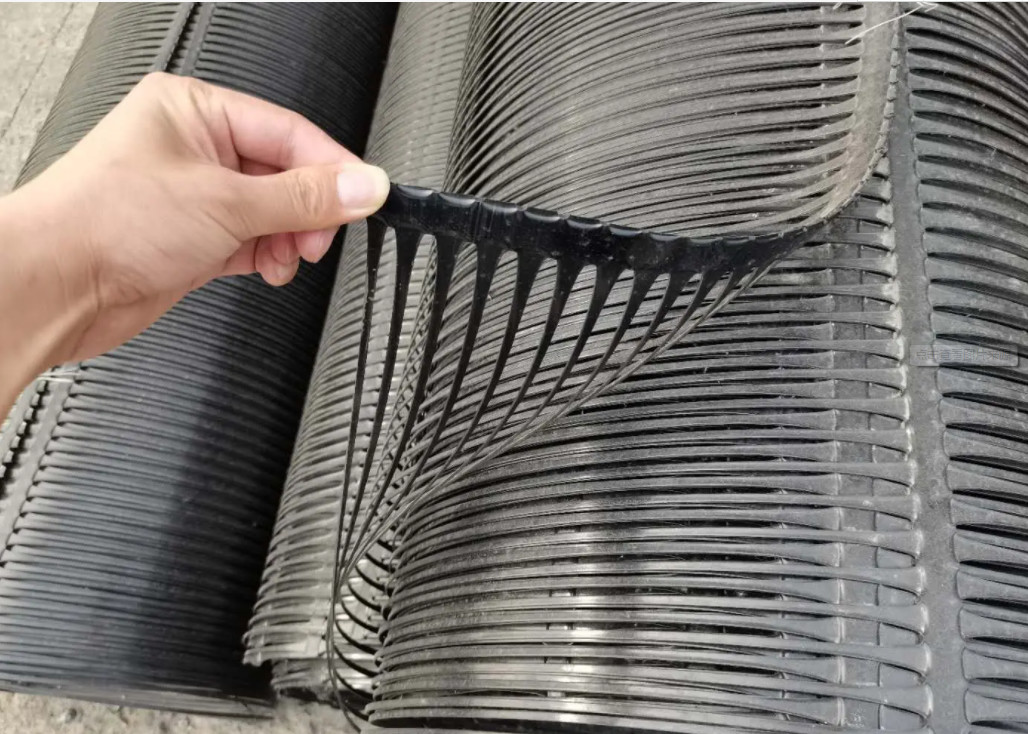

Uniaxial Geogrid For Outside Construction Slop Protection Road Foundation Protection
material: HDPE, steel plastic, high molecular polymer
function: flood dike reinforcement,
advantage: high tensile strength, anti-aging and corrosion resistance
Uniaxial Geogrids are geosynthetic material made from polymers such as polypropylene,polyethylene or polyester and are used widely in Civil Engineering applications to provide tensile reinforcement of soil.They are in the form of open grids so that soil can strike through the apertures and the two materials interlock together to give composite behaviour. They are used in the construction of retaining walls, steep slopes, roadway bases and foundations.
Product Parameter
Uniaxial geogrid(PP)Technical Parameter (GB standard) | ||||||||
Item | Specification | |||||||
Type | TGDG25 | TGDG35 | TGDG50 | TGDG80 | TGDG110 | TGDG150 | TGD170 | TGDG200 |
Tensile Strength≥(KN/M) | 25 | 35 | 50 | 80 | 110 | 150 | 170 | 200 |
Maximum elongation≤(%) | 10 | |||||||
Tensile strength at 2% elongation≥(KN/M) | 7 | 10 | 12 | 20 | 32 | 48 | 64 | 85 |
Tensile strength at 5% elongation≥(KN/M) | 14 | 20 | 28 | 48 | 64 | 90 | 120 | 145 |
Applications
Making reinforcement treatment for various kinds of soft soil foundation to enenly distribute load stress and reduce un-even settlement, used in highway, railway,port, airport and municipal.
Advantage:
Packing
Roll packed as rollers with the core pipe, 2 layers woven bags with strengthened belt for quick unloading and protection.
