Subway Construction Polypropylene Composite Geomembrane Fabric 5.5m 5.8m

Basic Information
Place of Origin: Luan China
Brand Name: Wanshengli
Certification: BV, ISO,ASTM
Model Number: 800gsm
Minimum Order Quantity: 1100sqm or can be negotiated
Price: 0.3 USD ~3.8 USD per sqm
Packaging Details: Standard packing or as your request
Delivery Time: As per your quantity
Payment Terms: T/T, Western Union, MoneyGram or through alibaba trade assurance
Supply Ability: 40000 square meters per day
Detail Information
Main Material: HDPE Geomembrane And Geotextile Length: 50m 100m
Width: 5.5m 5.8m Gross Weight: 800g
MOQ: 1100sqm Main Color: White
High Light:

Polypropylene Composite Geomembrane

,

Composite Geomembrane Fabric

,

polypropylene geomembrane Fabric


Product Description

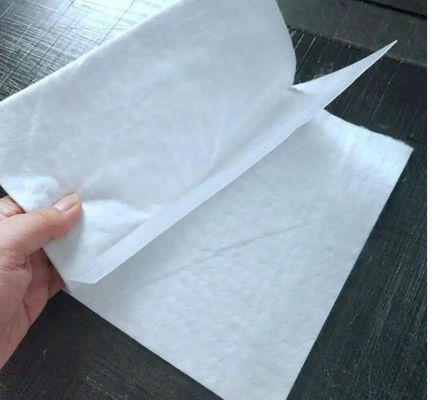

Subway Construction Composite Geomembrane 5.5m 5.8m Width Soil Stabilization Fabric



Composite Geomembrane Detail:



Material: HDPE geomembrane, non woven geotextile

weight: 800g/㎡

function: anti-seepage, guard, soil isolation, dam reinforce

advantage: puncture resistance, high tensile strength



Subway Construction Polypropylene Composite Geomembrane Fabric 5.5m 5.8m 0



Advantages

  • The friction coefficient is increased to prevent the slippage of the covering layer
  • High mechanical strength such as tensile, tear, burst, puncture, etc.
  • With a certain amount of deformation, the stress transfer caused by the concave and convex defects of the bottom cushion layer disperses quickly, and the strain capacity is strong
  • It has a certain thermal insulation effect, reducing the damage of soil frost heaving to the geomembrane, thereby reducing soil deformation

Subway Construction Polypropylene Composite Geomembrane Fabric 5.5m 5.8m 1



Product Specification:

  • one-geotextile-one-geomembrane: basic geotextile: 100-1255 g/㎡, geomembrane thickness: 0.1-1.5mm
  • two-geotextile-one-geomembrane: basic geotextile: 80-600 g/㎡, geomembrane thickness: 0.2-1.5mm
  • one-geotextile-two-geomembrane: basic geotextile: 100-1255 g/㎡, geomembrane thickness: 0.1-0.8mm
  • multi-geotextile-multi-geomembrane: basic geotextile: 100-1255 g/㎡, geomembrane thickness: 0.1-0.8mm
  •

Composite geomembrane parameter



Weight(g/m2) 400 500 600 700 800 900 1000 Remark
PE thickness(mm ) 0.20-0.35 0.30-0. 60
Types One cloth one film (g/m2/mm) 150/0.25 200/03 300/03 300/0.4 300/0.5 400/0.5 400/0.5
Two cloth one film(g/m2/mm) 100/0.2/100 100/0.3/100 150/0.3/150 200/0.3/200 200/0.4/200 200/0.5/200 250/0.5/250
Deviation per unit(%) -10
Break Strength (KN/m ) ≥5 ≥7.5 ≥10 ≥12 ≥14 ≥16 ≥18 Vertical and horizontal
Break Elongation (% ) 30-100
Deviatiob per unit(%) 10
Tear Resistance (KN ) ≥0.15 ≥0.25 ≥0.32 ≥0.4 ≥0.48 ≥0.56 ≥0.62 Vertical and horizontal
CBR Burst Strength CBR (KN ) ≥1.1 ≥1.5 ≥1.9 ≥2.2 ≥2.5 ≥2.8 ≥3 Vertical and horizontal
Permeability coefficient (cm/s ) ≤10 -12
  Note: Above items are basic and partial products , other models can be produced according to different requirements.



Applications

  • Traffic culvert
  • Storm water attenuation
  • Landfill lining and capping
  • Sbuway, water conservancy dam, artificial lake
  • Airport and road geotech engineering construction
  • Fish and shrimp ponds and lakes, reservoirs, lagoons



Packing



Well packed as roll with pipe core, 2-layer woven Bags and tight belt to protect and conveniently unload.
