Load Support Gravel Geocell Applying In Mining Road Construction Project

Basic Information
Place of Origin: Anhui, Luan, China
Brand Name: Wanshengli
Certification: GB, ISO, SGS
Minimum Order Quantity: 1000sqm
Price: 0.3 USD ~5 USD per sqm
Packaging Details: Plastic bags or as your request
Delivery Time: 5~8 working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000 sqm per day
Detail Information
Material: Virgin HDPE Material Color: Black
Sample: Free Provided Tensile Yield Strength: 3.75N/mm-29N/mm
Standard: ISO9001, ISO14001,OSHSAS18001,GM-13, ASTM

Product Description

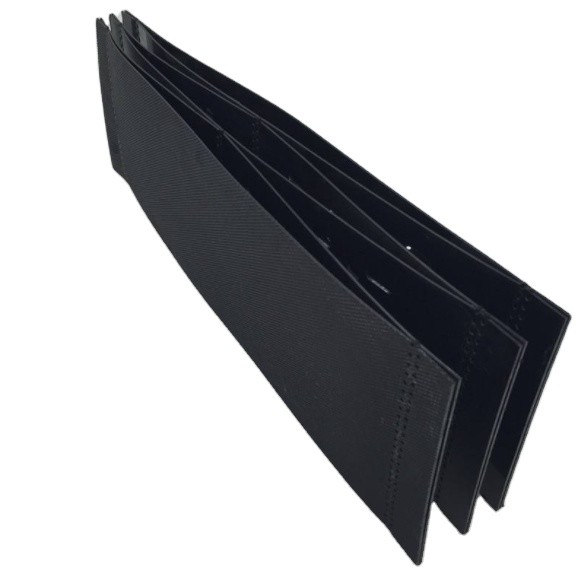

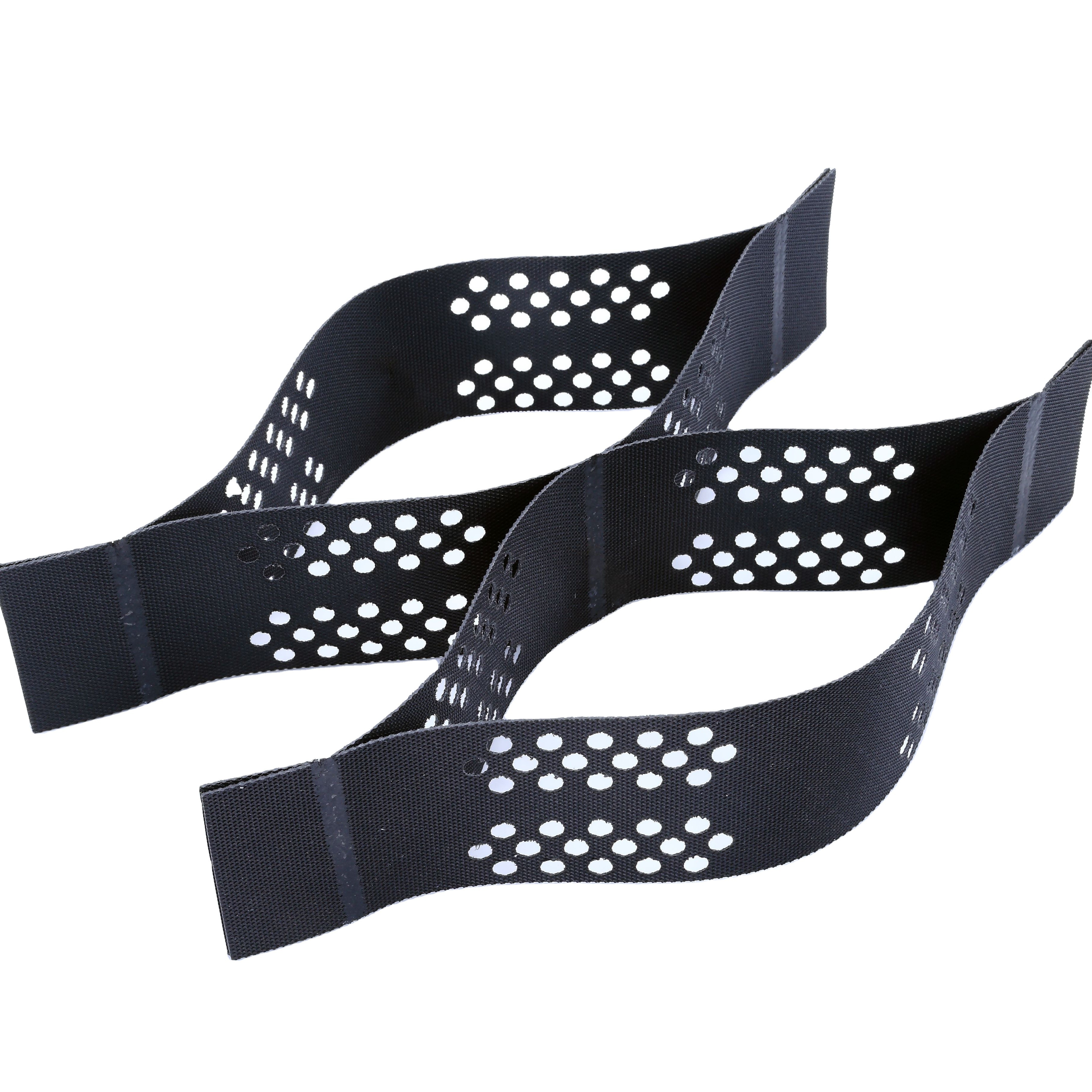

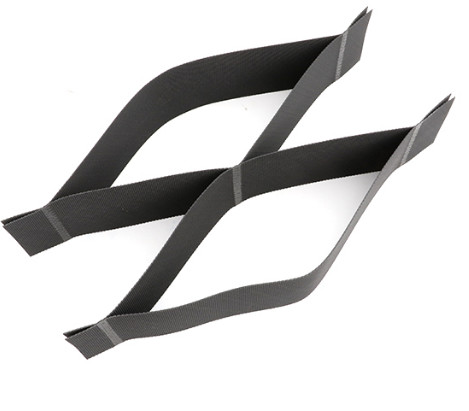

Geocell



Geocell is three dimensional, honeycomb like structures produced from high density polyethylene and jointly welded by ultrasonic technique. It's flexible to fold during the transport and installation on construction site. The geocell nets will be filled with soils, granular, cements or other onsite in-fill materials when stretched into web structures, which has powerful and rigid confinement in the lateral and vertical sides.



Load Support Gravel Geocell Applying In Mining Road Construction Project 0



Product Parameter



Product type Height(mm) Welding Distance(mm) Thickness(mm) Tensile Strength Of Welding Points(N/cm) Tensile Strength of Connection of Cell( N/cm) Tensile Strength at Yield of Each Sheet(Mpa)
Smooth and not perforated 50≦H≦250 330≦A≦1000 1.0--1.4 ≧100 ≧120 ≧20
Smooth and perforated 50≦H≦250 330≦A≦1000 1.0--1.4 ≧100 ≧120 ≧20
Textured and not perforated 50≦H≦250 330≦A≦1000 1.0--1.7 ≧100 ≧120 ≧20
Textured and perforated 50≦H≦250 330≦A≦1000 1.0--1.7 ≧100 ≧120 ≧20





Applications



1.Load support: Solve unacceptable road,parking, and yard surface problems.

2.Slope protection: Create a stable environment for long-term sustainability of embankment material.

3.Channel protection: Ensure stability and protection of channels exposed to all types of erosive conditions.

4.Vegetated retaining walls: includes steepened slopes, retaining walls, gravity walls and so on.



Load Support Gravel Geocell Applying In Mining Road Construction Project 1Load Support Gravel Geocell Applying In Mining Road Construction Project 2Load Support Gravel Geocell Applying In Mining Road Construction Project 3Load Support Gravel Geocell Applying In Mining Road Construction Project 4

Load Support Gravel Geocell Applying In Mining Road Construction Project 5Load Support Gravel Geocell Applying In Mining Road Construction Project 6Load Support Gravel Geocell Applying In Mining Road Construction Project 7Load Support Gravel Geocell Applying In Mining Road Construction Project 8

Load Support Gravel Geocell Applying In Mining Road Construction Project 9Load Support Gravel Geocell Applying In Mining Road Construction Project 10Load Support Gravel Geocell Applying In Mining Road Construction Project 11Load Support Gravel Geocell Applying In Mining Road Construction Project 12
