Wanshengli Brand Load Support HDPE GeoCells From Manufacture Direct Selling Competitive Price
Material: HDPE material, Plastic, Pet
Function: reinforcement, strengthen
Application: road foundation strengthen

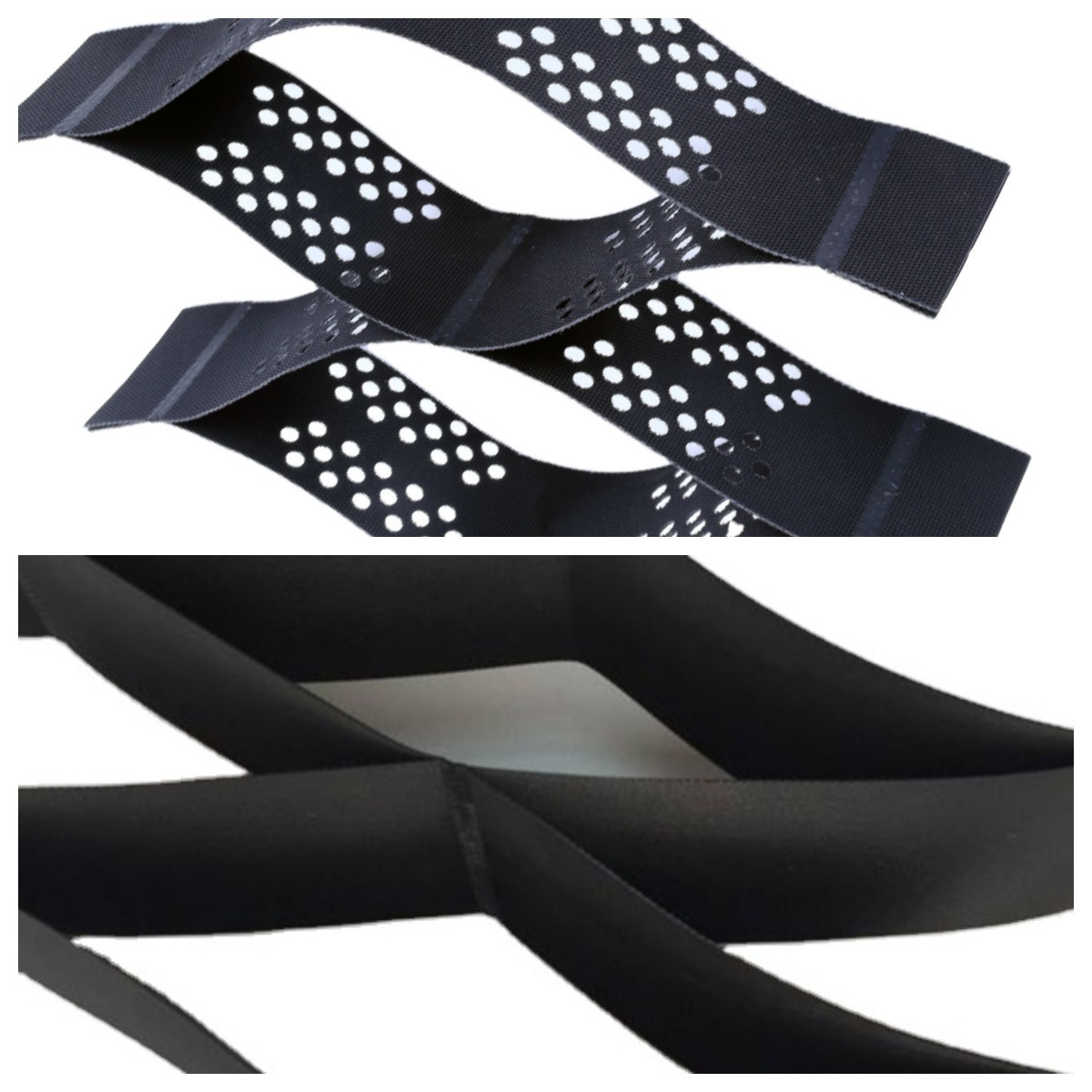

Wanshengli brand HDPE geocell is widely used in construction for erosion control, soil stabilization on flat ground and steep slopes, channel protection, and structural reinforcement for load support and earth retention.Typical cellular confinement systems are geosynthetics made with ultrasonically welded high-density polyethylene (HDPE) strips or PP and expanded on-site to form a honeycomb-like structure—and filled with sand, soil, rock, gravel or concrete.
Load support geocell is utilized in horizontal applications and provide a honeycomb style reinforcement of aggregate or soil by confining materials and preventing lateral movement away from the applied load. It serves as a means to increase the load-bearing capacity of a given area, and it does so by distributing said load over each of the different cells, which are filled with the aggregate of your choosing. These cells can be filled with a variety of different aggregates and other lower-quality materials, and can be installed under grass, pavers, and gravel. If you choose to fill with gravel we also carry gravel ok, a clear and permeable binder that further aids in load distribution.
1. It is capable of expansion and contraction, and it can be folded during transportation and stretched during construction.
2. It is formed by light material with stable chemical properties which is resistant to abrasion, photooxidation, acid, and alkali, It is suitable for different soil and desert conditions.
3. It has a higher lateral limit, anti-skid, and anti-deformation, and can effectively enhance the bearing capacity of the roadbed and load distribution.
4. It can meet different engineering needs by changing height, welding distance, and other geometric dimensiones.
product is convenient to connect and can improve construction speed.
|Product type||Height(mm)||Welding Distance(mm)||Thickness(mm)||Tensile Strength Of Welding Points(N/cm)||Tensile Strength of Connection of Cell( N/cm)||Tensile Strength at Yield of Each Sheet(Mpa)|
|Smooth and not perforated||50≦H≦250||330≦A≦1000||1.0--1.4||≧100||≧120||≧20|
|Smooth and perforated||50≦H≦250||330≦A≦1000||1.0--1.4||≧100||≧120||≧20|
|Textured and not perforated||50≦H≦250||330≦A≦1000||1.0--1.7||≧100||≧120||≧20|
|Textured and perforated||50≦H≦250||330≦A≦1000||1.0--1.7||≧100||≧120||≧20|
Permeable Golf Cart Path
Paver Base Support
Livestock Management Areas

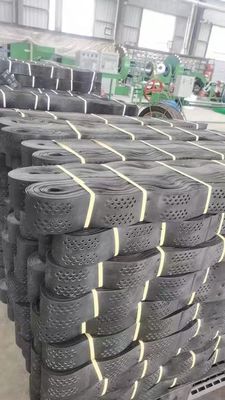

All products are packed by belts on the wood pallet. we make sure that customers receive the products well. We also accept customer's required packing method.As for shipping service we will choose famous agent for the products to guarantee the goods will reach our client's side on time.
