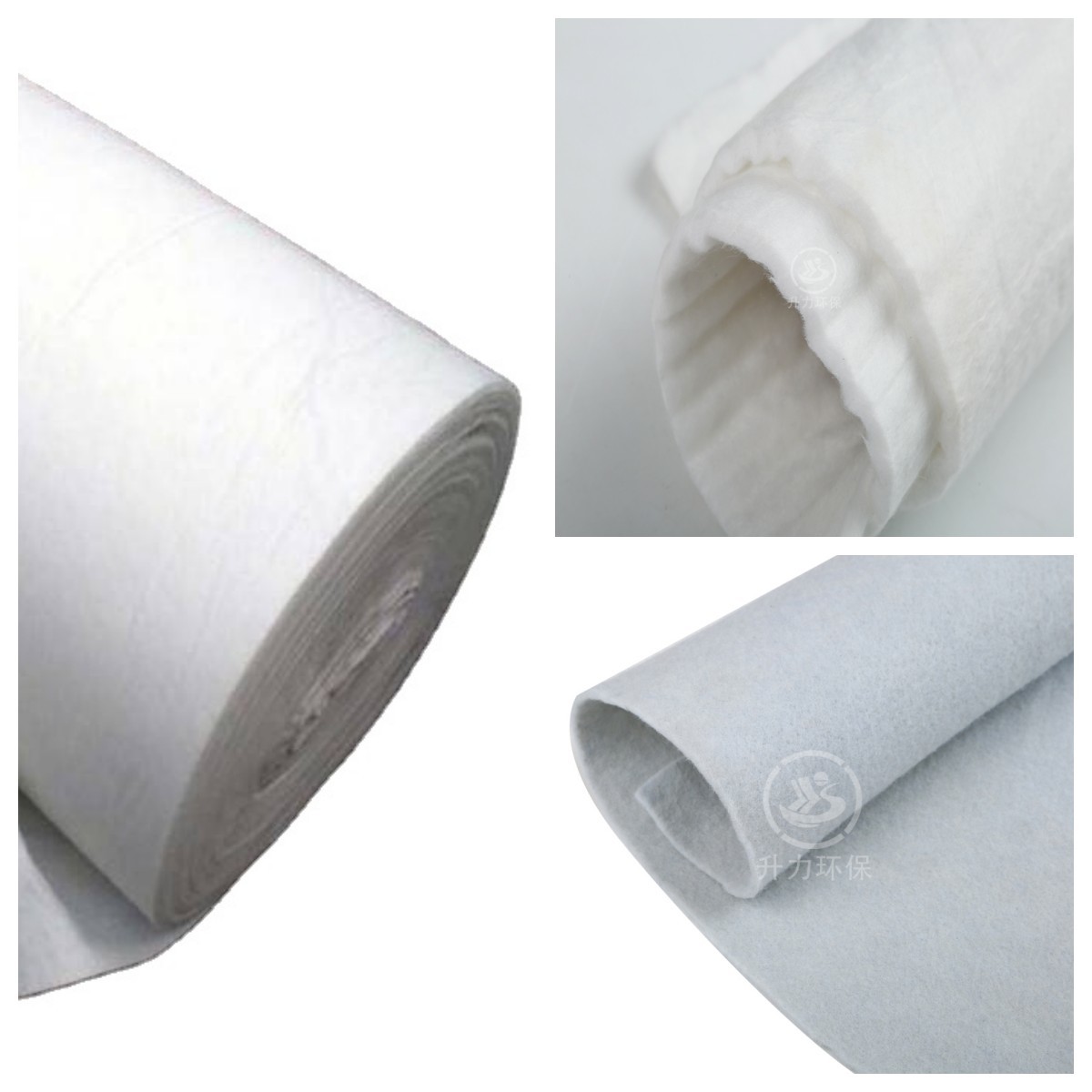

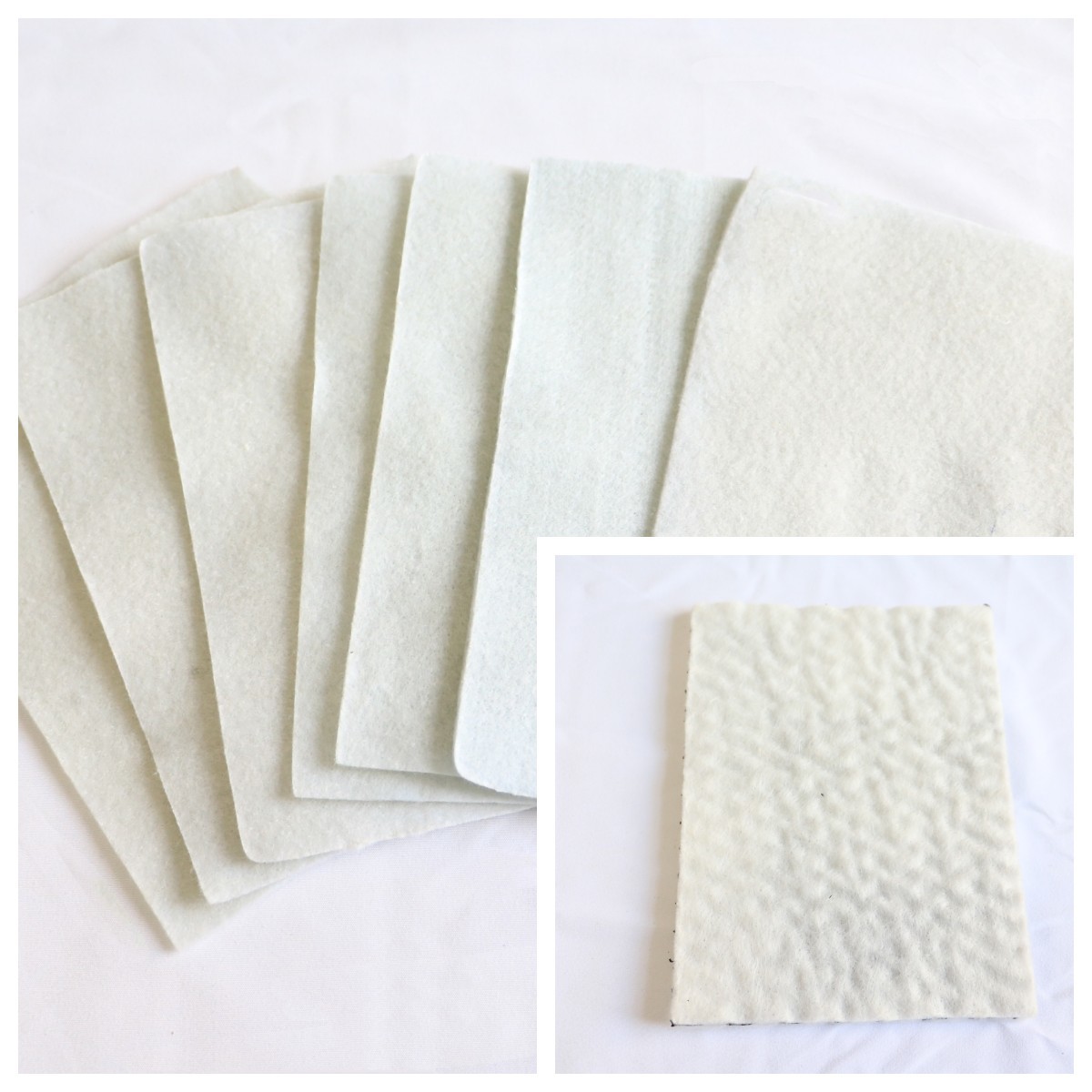

Wanshengli brand short fiber non woven filament geotextile is made from PP polypropylene, and PET polyester, which is a new special geotechnical engineering construction material. It is ok for different thickness, because short filament fabric is stiff, thick, plump and soft. Short non woven fiber filament geotextile is interweaved into net by high technology, advanced equipment and special steps with different kinds of fibers by needling punch and other procedures.
Short-filament geotextiles are made of short fibers that are laid out into a mesh through different equipment and processes. After acupuncture and other processes, different fibers are intertwined with each other, entangled, and fixed with each other to normalize the fabric, making the fabric soft, plump and thick. , Stiff, to meet the requirements of different thicknesses, non-woven geotextiles have good fabric gaps, good adhesion, and separation, due to the soft fiber, it has a certain tear resistance and good deformation adaptability, and at the same time It has good surface drainage ability, soft surface with many gaps, and good friction coefficient, which can increase the adhesion of soil particles, etc., can prevent fine particles from passing through, prevent the loss of particles and drop excess water, and the surface is soft and has good protection. ability. It can play a good role in filtering, isolation, reinforcement, protection, etc., is a used geosynthetics. The product has excellent properties such as acid and alkali resistance, corrosion resistance, aging resistance, high strength, stable size, and good filterability. The main function is the enhancement, isolation, anti-filtration, drainage of the project, and is used in water conservancy, highway, railway, and other fields.
This needle punched non-woven geotextile, it is geotechnical engineering and civil engineering applications in a geosynthetics, is through the polypropylene / polyester filament into a network and consolidation method, the fiber arranged into a three-dimensional structure The In addition to good mechanical properties, but also has a good vertical and horizontal drainage performance and good extension properties and high resistance to biological, acid and alkali, anti-aging and other chemical stability. At the same time, it also has a wide pore size range, tortuous pore distribution, excellent permeability and filtration performance.
Geosynthetic Fabric Features
1.High tensile strength, anti-deformation , resistance to tear and puncture .
2.Excellent water permeability and filterability .
3.Good resistance to aging ,biological ,acid and alkali.
4.Resistance to corrosion and UV
5.Excellent good performance and reinforced performance .
| No. |
Item Index Specification |
100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 800 | Remarks |
| 1 | Unit area mass deviation,% | -8 | -8 | -8 | -8 | -7 | -7 | -7 | -7 | -6 | -6 | -6 | |
| 2 | thickness, mm ≥ | 0.9 | 1.3 | 1.7 | 2.1 | 2.4 | 2.7 | 3 | 3.3 | 3.6 | 4.1 | 5 | |
| 3 | Width deviation, % | -0.5 | |||||||||||
| 4 | Breaking strength, KN/M ≥ | 0.08 | 0.12 | 0.16 | 0.2 | 0.24 | 0.28 | 0.33 | 0.38 | 0.42 | 0.46 | 0.6 | Vertical and horizontal |
| 5 | Elongation at break, % | 25-100 | |||||||||||
| 6 | CBR bursting strength,KN ≥ | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3.2 | 4 | |
| 7 | Equivalent aperture,O99(O35),mm | 0.07-0.2 | |||||||||||
| 8 | Vertical permeability coefficient,cm/s | KX(10 -1 -10 -3 ) | K=1.0-9.9 | ||||||||||
| 9 | Tear strength 3,KN ≥ | 0.08 | 0.12 | 0.16 | 0.2 | 0.24 | 0.28 | 0.33 | 0.38 | 0.42 | 0.4 | 0.6 | Vertical and horizontal |
| Product Name | Non-woven Geotextile |
| Brand | Wanshengli |
| Width | 1m , 2m ,3m , 4m , 5m ,6m |
| Length | 50m ,100m , |
| Weight | 200g/m2 , 300g/m2 ,350g, 400g/m2 , 500g/m2--1000g/m2 |
Geotextile, also known as geotextile fabric, is a permeable geosynthetic material made of synthetic fibers by needle punching or weaving. Geotextile is one of the new geosynthetic materials. The finished product is cloth-like, with a general width of 4-6 meters and a length of 50-100 meters. Geotextiles have excellent filtration, drainage, isolation, reinforcement, and protection functions, and have the characteristics of lightweight, high tensile strength, good permeability, high-temperature resistance, freezing resistance, aging resistance, and corrosion resistance. There are many types of geotextiles. Short-filament geotextiles and filament geotextiles are two types of geotextiles. and non-woven geotextile or woven geotextile. Let’s take a look at the differences between short-filament geotextiles and filament geotextiles and short-filament geotextiles and filament geotextiles.
Applications
(1) The filter layer of water wells, pressure relief wells, or oblique pipes in water conservancy projects.
(2) Geotextile isolation layer between roads, airports, railway tracks, and artificial rockfills and foundations.
(3) Vertical or horizontal drainage inside the earth dam, buried in the soil to dissipate pore water pressure.
(4) Drainage behind the anti-seepage geomembrane in earth dams or earth embankments or under the concrete cover.
(5) Drop the seepage around the tunnel, reduce the external water pressure on the lining, and seepage around the buildings.
Geosynthetic Fabric Geotextile Package
Product is packed as rolls with tight belt and woven bags. It can gurantee convenient unloading and protecting product.
