Quick Detail:
Material: polyethelene, polyester
Weight: 120g, 150g,180g,200g

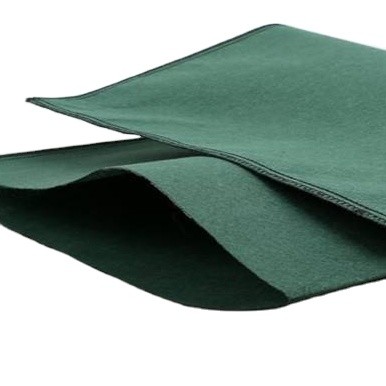

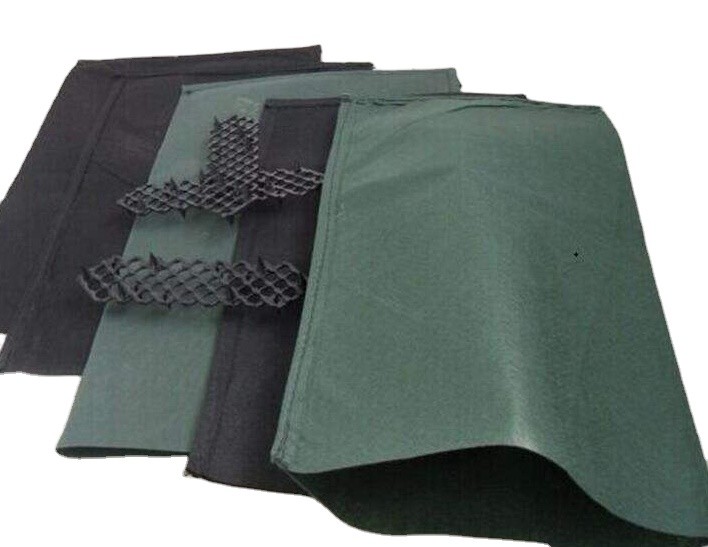

Ecological bag is a kind of high strength anti-uv anti-freezing and thawing anti-acid and alkali ecological synthetic material, is a new high-tech special material, with high strength anti-uv anti-acid and alkali anti-corrosion anti-freezing and thawing can reach more than 50 years of non-degradation, is the real realization of zero pollution.Mainly used in the construction of flexible ecological slope.Eco-bag is a kind of good tool for protecting ecology, because it is resistant to moisture, does not absorb water, does not damage the bag, does not deform, and is insoluble in polluted liquid
Property:
1. For ecological restoration, infrastructure construction, landscaping and residence;
2. Anti-ultraviolet, anti-humidity, strong corrosion resistance, long service life;
3. In slope engineering, it can replace stone, cement and other materials, greatly reducing project cost
4. With the filtration function of permeable cloth, it has a strong protective and stabilizing effect on soil loss, local debris flow,
slope collapse, etc., and can stabilize the natural slope
Application:
*Coastal Protection
Coastal Protection is used to prevent coastline erosion and retreat to preserve natural landscapes, protect housing, and provide safety to on-shore infrastructure.
*Dam and Levees
Dams and Levees are used to prevent flooding, enable construction to occur within calm water, storage of water, and to provide protection from storm activity.
*Road Slope Protection
Railway and highway slope protection, suitable for excavation slopes and filling slopes.
* Landscape
Roof garden greening and commercial residential area.
Geosynthetic Fabric Features
| Nominal fracture strength (KN/m) |
3 |
5 |
8 |
10 |
15 |
20 |
25 |
30 |
40 |
|
| Fracture strength (VERTICAL and vertical) (KN/m) |
3.0 |
5.0 |
8.0 |
10.0 |
15.0 |
20.0 |
25.0 |
30.0 |
40.0 |
|
| Nominal breaking strength corresponds to elongation (%) | 20~100 | |||||||||
| CBR top breaking strength (KN≥) | 0.6 | 1.0 | 1.4 | 1.8 | 2.5 | 3.2 | 4.0 | 5.5 | 7.0 | |
| Mass deviation rate per unit area (%) | ±5 | |||||||||
| Equivalent aperture 0x0(0S) (mm) | 0.07～0.20 | |||||||||
| Vertical permeability coefficient (cm/s) | KX(10-1～10-3), where K=1.0～9.9 | |||||||||
| Tearing strength (vertical and horizontal) (KN≥) | 0.10 | 0.15 | 0.20 | 0.25 | 0.40 | 0.50 | 0.65 | 0.80 | 1.0 | |
Geosynthetic Fabric Geotextile Package
packed as rolls with tight belt and woven bags. It can gurantee convenient unloading and protecting product.
