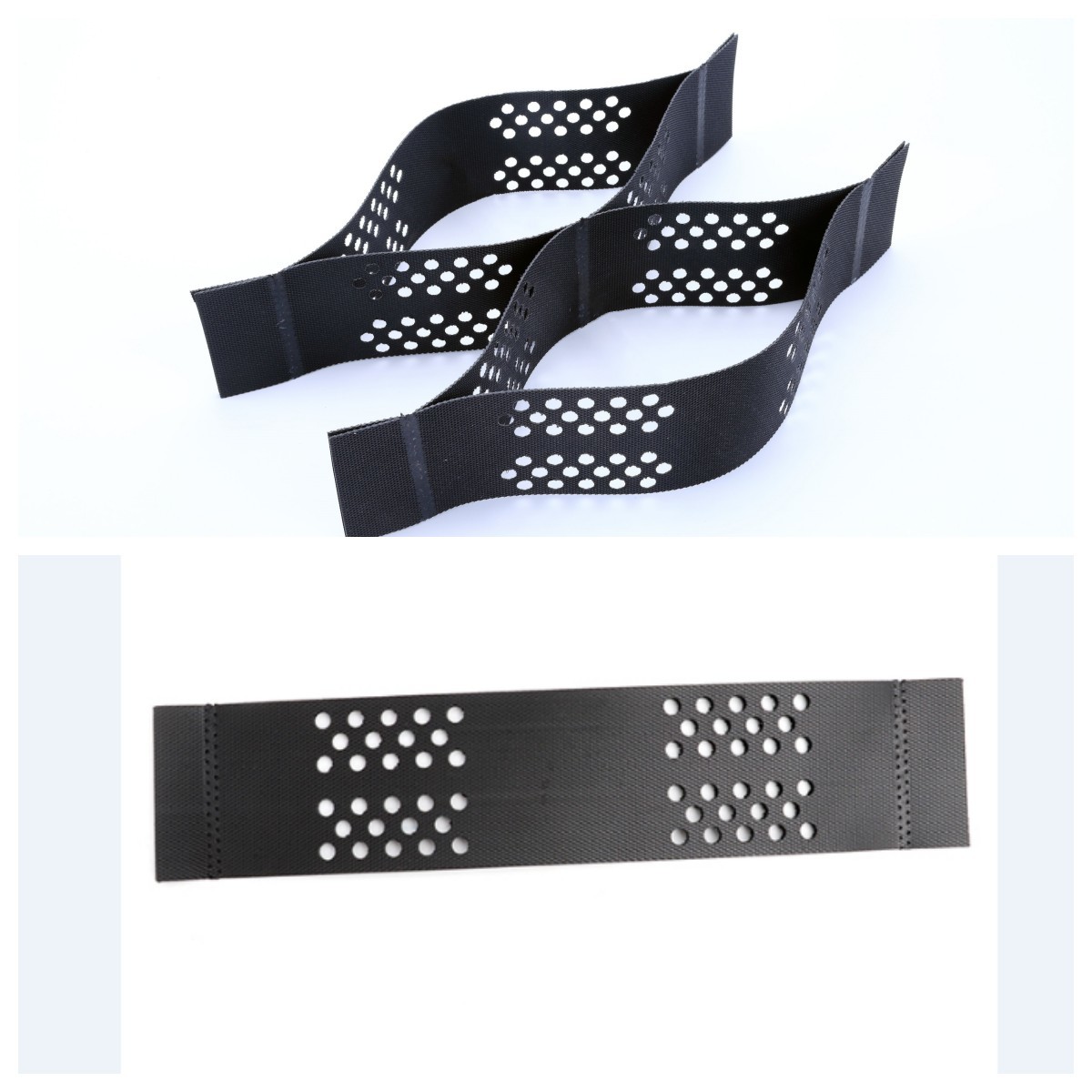

Textured Perforated Plastic Geocell Manufacturer Gravel Grid Geo Cell Soil Stabilizer HDPE Geocell
Quick Detail:
Material: HDPE material, Plastic, Pet
Height: 50mm~200mm
Function: reinforcement, strengthen
Application: road foundation strengthen
Description:
Wanshengli geocells can be used with many types of temporary and permanent pavements, including porous asphalt and porous block paving. They can be used to protect the root structure of trees from damage caused by the compaction due to vehicular traffic. The porous surface ensures that water and essential nutrients reach the tree roots. By laying a non-woven geotextile under the geocell fines cannot wash through and clog the system.
Cellular confinement systems can be used as an alternative to Rip Rap rock armouring where suitable large rock is not available. However, in areas of high flow velocity, geocells filled with small rocks are generally not a suitable replacement and concrete mats should be used.
It is utilized in horizontal applications and provide a honeycomb style reinforcement of aggregate or soil by confining materials and preventing lateral movement away from the applied load. It serves as a means to increase the load-bearing capacity of a given area, and it does so by distributing said load over each of the different cells, which are filled with the aggregate of your choosing. These cells can be filled with a variety of different aggregates and other lower-quality materials, and can be installed under grass, pavers, and gravel. If you choose to fill with gravel we also carry gravel ok, a clear and permeable binder that further aids in load distribution.
Advantages:
1. It is capable of expansion and contraction, and it can be folded during transportation and stretched during construction.
2. It is formed by light material with stable chemical properties which is resistant to abrasion, photooxidation, acid, and alkali, It is suitable for different soil and desert conditions.
3. It has a higher lateral limit, anti-skid, and anti-deformation, and can effectively enhance the bearing capacity of the roadbed and load distribution.
4. It can meet different engineering needs by changing height, welding distance, and other geometric dimensiones.
product is convenient to connect and can improve construction speed.
Product Data
| Product type | Height(mm) | Welding Distance(mm) | Thickness(mm) | Tensile Strength Of Welding Points(N/cm) | Tensile Strength of Connection of Cell( N/cm) | Tensile Strength at Yield of Each Sheet(Mpa) |
| Smooth and not perforated | 50≦H≦250 | 330≦A≦1000 | 1.0--1.4 | ≧100 | ≧120 | ≧20 |
| Smooth and perforated | 50≦H≦250 | 330≦A≦1000 | 1.0--1.4 | ≧100 | ≧120 | ≧20 |
| Textured and not perforated | 50≦H≦250 | 330≦A≦1000 | 1.0--1.7 | ≧100 | ≧120 | ≧20 |
| Textured and perforated | 50≦H≦250 | 330≦A≦1000 | 1.0--1.7 | ≧100 | ≧120 | ≧20 |
| Specs |
Hight mm |
Welding distance mm |
Tensile strength Mpa |
Weld tensile strength KN |
| GS20 | 200 | 400 | 25 | 2.0 |
| 300 | ||||
| GS15 | 150 | 400 | 25 | 1.5 |
| 330 | ||||
| GS10 | 100 | 1000 | 25 | 1.0 |
| 470 | ||||
| 400 | ||||
| 330 | ||||
| GS8 | 80 | 1000 | 25 | 0.8 |
| 470 | ||||
| 400 | ||||
| 330 | ||||
| GS5 | 50 | 470 | 25 | 0.5 |
| 400 | ||||
| 330 |
Products Application:
Erosion control
Load support – hard pads for heavy equipment, road and rail support
Slope protection
Channel protection
Retaining walls
Ground stabilisation and temporary haul roads
Tree root protection
Installation
Prepare the area by removing old soil, vegetation and debris.
Put a sub-base layer if necessary and grade as necessary.
Pin down one of our drainage fabrics or ground covers if necessary for separation and stability.
Stake out the Geocell's using rebar, stakes or large anchor pins. If necessary cut Geocell ahead of time with a hand saw (recipricating saw works great).
Fill the Geocell with your soil, sand, gravel or rock material and rake level.
Packing:
All products are packed by belts on the wood pallet. we make sure that customers receive the products well. We also accept customer's required packing method.As for shipping service we will choose famous agent for the products to guarantee the goods will reach our client's side on time.
